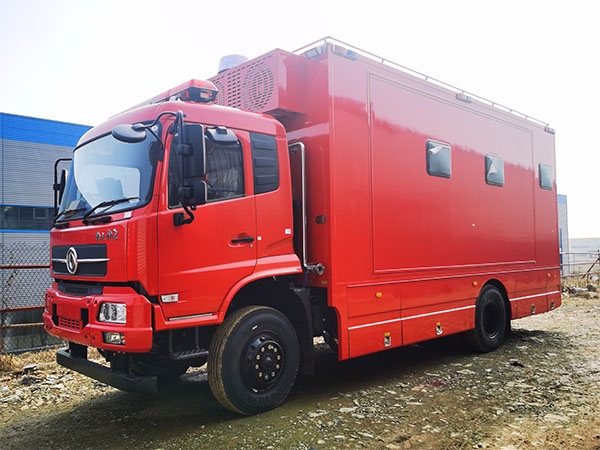

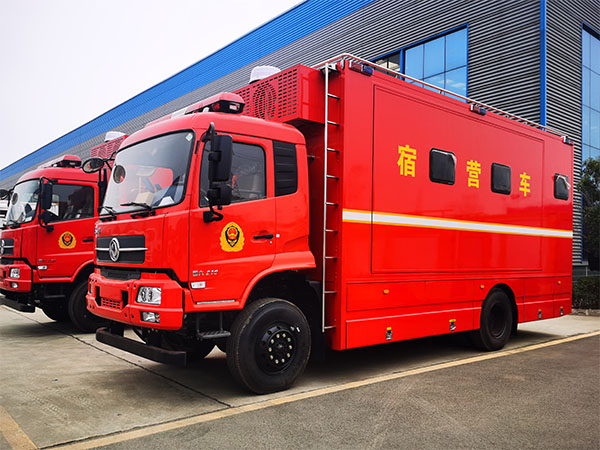

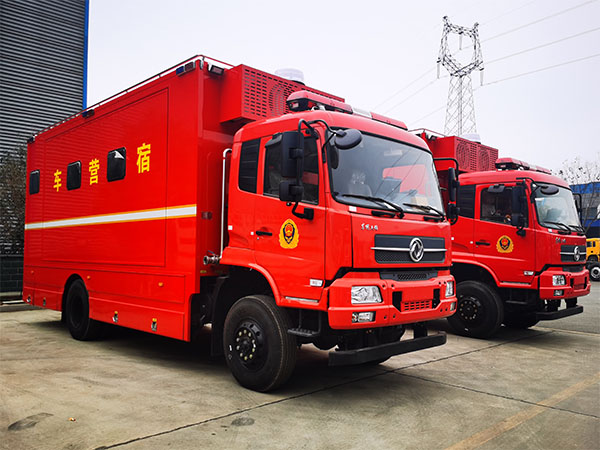

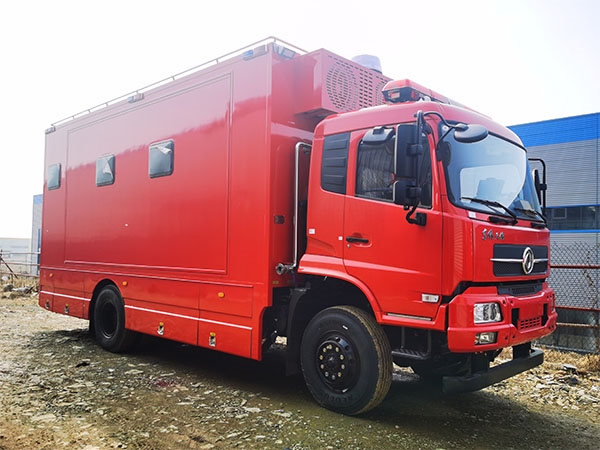

Dongfeng Tianjin 4X4 24-person camping truck
Camping truck is a logistics comprehensive support task vehicle specifically designed for personnel to stay and rest outside.
The camping truck mainly consists of a second-class car chassis, an extended camping shelter, camping facilities, air conditioning system, film and television system, shower system, waterway system, electrical system, lightning protection system, etc. Can accommodate 8-24 people, with simple grooming and convenience. Having a comfortable sleeping environment and complete sanitary facilities. A camping vehicle is a mobile campsite that provides a resting place for firefighting special agents, meeting the needs of accommodation, reading, and writing. Featuring a comfortable sleeping environment and complete sanitation facilities, the vehicle is agile and reliable, with good environmental adaptability
24 person camping vehicle in car camping facilities and configurations:
1. Box design
The RV adopts high-quality fiberglass skin, and the internal structure is composed of steel frame and polyurethane filling to ensure strength and thermal insulation. The overall size of the vehicle is 9600mm 2500mm 3980mm, and the box size is 7200mm 2490mm 2500mm.
2. Internal configuration
(1) Cabin door and skirt: equipped with cabin doors with observation windows and skirt edges on both sides.
(2) Camping beds: There are a total of 24 bunk beds that can be folded and flipped, with dimensions of 1900mm and 650mm.
(3) Floor mats, windows, and curtains: Comes with PVC floor mats, 6 sliding windows (3 on the left and 3 on the right), and 6 curtains.
3. Electrical equipment
(1) Generator: A diesel generator with a rated power of 5KW.
(2) Television, lighting, and power supply: including a 32 inch LCD LED TV, lighting equipment (including ceiling lights, flexible reading lights, emergency lighting), and UPS power supply system.
(3) Power control: equipped with switches, sockets, heaters, air conditioners, etc., as well as electrical control boxes and distribution and control systems used to control the vehicle's circuits.
4. Other devices
(1) Hydraulic leg and fire extinguisher: The hydraulic leg assembly includes 4 support legs, hydraulic pump, and electric/manual control device, as well as 4 1.5KG dry powder fire extinguishers.
(2) Automatic side drawer system: includes two composite panel side drawer bodies, equipped with an automatic control box and mechanical telescopic legs to support the expansion box. This system is easy to operate, small in size, stable and reliable.
5. Appearance design
In terms of appearance, patterns and paint are made according to user requirements.
Parameter
