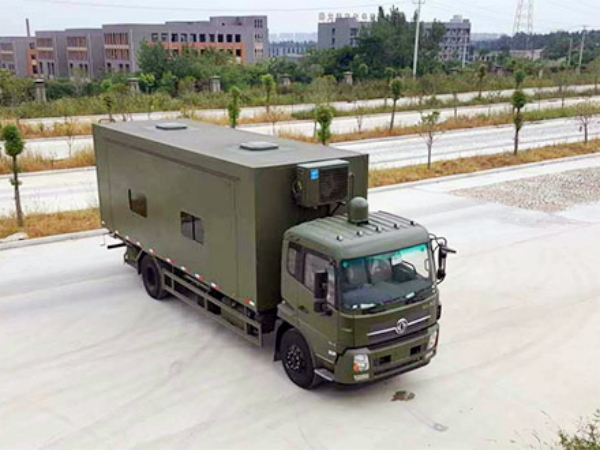

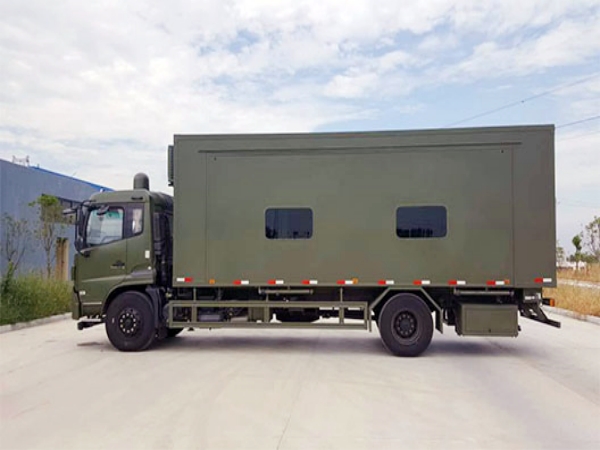

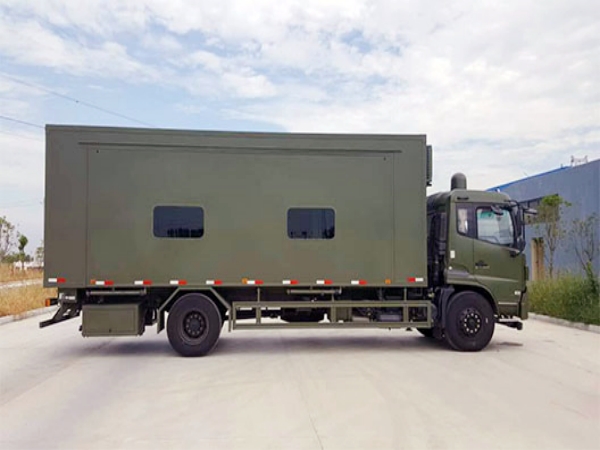

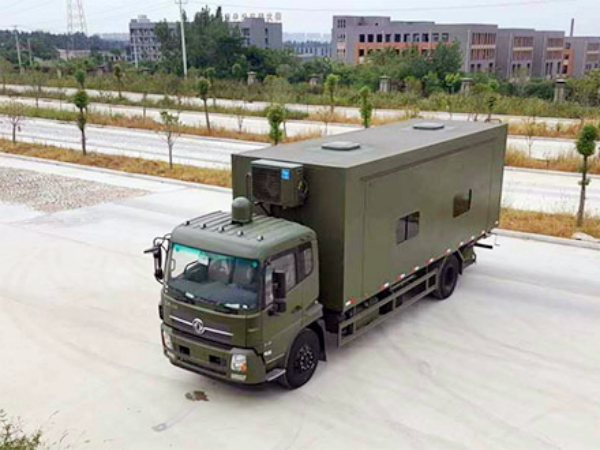

Dongfeng Tianjin 24 person military camping vehicle
Camping vehicle is a logistics comprehensive support task vehicle specifically designed for personnel to stay and rest outside.
The camping vehicle mainly consists of a second-class car chassis, an extended camping shelter, camping facilities, air conditioning system, film and television system, shower system, waterway system, electrical system, lightning protection system, etc. Can accommodate 8-24 people, with simple grooming and convenience. Having a comfortable sleeping environment and complete sanitary facilities. A camping vehicle is a mobile campsite that provides a resting place for firefighting special agents, meeting the needs of accommodation, reading, and writing. Featuring a comfortable sleeping environment and complete sanitation facilities, the vehicle is agile and reliable, with good environmental adaptability
Detailed information on camping vehicles
Box section:
1. Box: The overall size of the vehicle is 9600x2500x3980mm, and the box size is 7200x2490x2500mm. The interior of the box is covered with a 2.5mm fiberglass skin, and the internal structure is composed of a steel skeleton and polyurethane filling, providing strength and insulation.
2. Cabin door: The vehicle is equipped with a set of cabin doors with observation windows for entering and exiting the vehicle and providing ventilation and visibility.
3. Skirts: Each side is equipped with a set of skirts to protect the lower part of the vehicle.

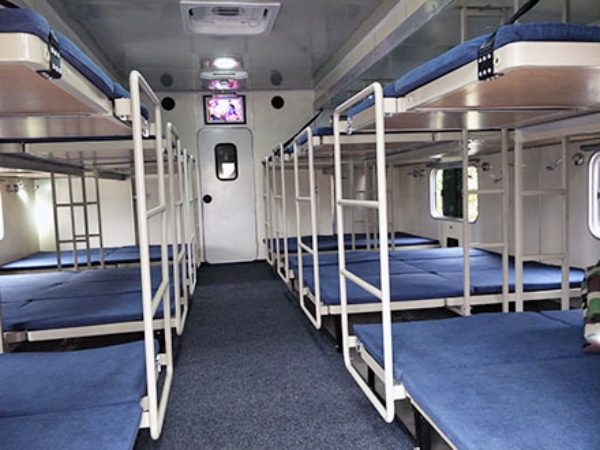

4. Camping beds: There are a total of 24 camping beds in the form of bunk beds, with dimensions of 1900x650 millimeters. The bunk beds can be flipped and folded to provide accommodation.
5. Floor mat: Use PVC floor mats for the protection and cleaning of the ground.
6. Windows: The vehicle is equipped with 3 sliding windows on each side panel, for a total of 6 windows, all of which are dedicated sliding windows for RVs and come with screen windows.
7. Curtains: There are 3 pull-out curtains on each side of the vehicle to cover the windows, providing privacy and shading.
Electrical equipment section:
8. Generator: Equipped with a diesel generator with a rated power of 5KW to provide electricity.
9. TV: Equipped with a 32 inch LCD LED TV.
10. Sunroof ventilation fan: The vehicle is equipped with two sets of 24V sunroof ventilation fans with escape devices.
11. Emergency lighting: Provide two emergency lighting fixtures.
12. Ceiling lights: There are 4 ceiling lights on the vehicle.
13. UPS power supply: One set of 3KVA non rack mounted UPS power supply.
14. Battery: There are a total of 8 sets of 12V 120A batteries.
15. Flexible reading lights: equipped with 24 flexible reading lights for night lighting and reading.
17. Warm air blower: A warm air blower with a heating power of 5KW.
18. Air conditioning: The vehicle is equipped with two 1.5P wall mounted air conditioners, one in the front and one in the back.
19. Electrical control box: a set of electrical control boxes used to control the entire vehicle circuit.
20. Power distribution and control system: Vehicle power distribution and wiring system.
21. Auxiliary batteries: There are a total of 2 auxiliary batteries with a capacity of 120A.
22. Charger: Xiamen Tuobao brand charger.
other:
23. Hydraulic support legs: including 4 support legs, hydraulic pump and electric/manual control device, solenoid valve, oil pipe and other accessories.
24. Appearance pattern and paint: Decorate the appearance pattern and paint according to user requirements.
25. Dry powder fire extinguishers: There are a total of 4 1.5KG dry powder fire extinguishers.
Automatic side drawer system:
26. Side drawer: The vehicle is equipped with two sets of composite panel side drawer bodies to increase storage space. The side pull box adopts hand cranked rotation, dual expansion, and gear rack meshing, providing fast, quiet, and stable functions.
27. Automatic control box: Two sets of automatic control boxes used to control the side drawer body.
28. Legs: Mechanical telescopic legs, 2 sets on each side, totaling 4 legs, used to support the expansion box.
