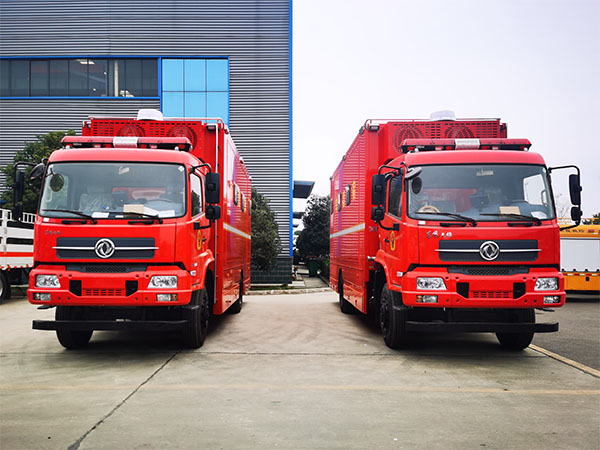

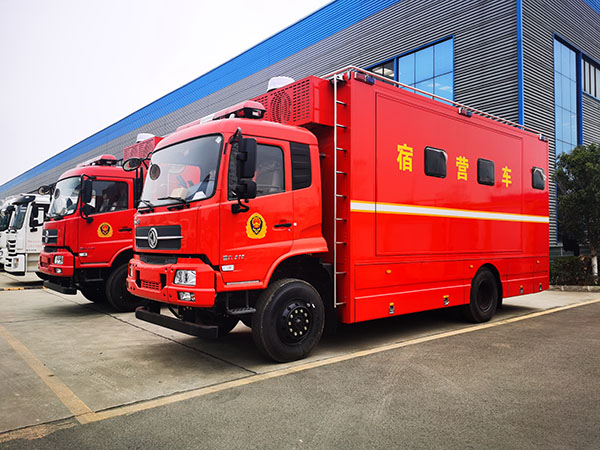

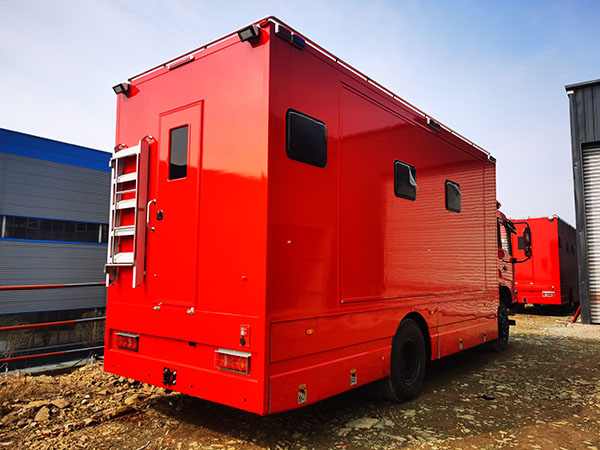

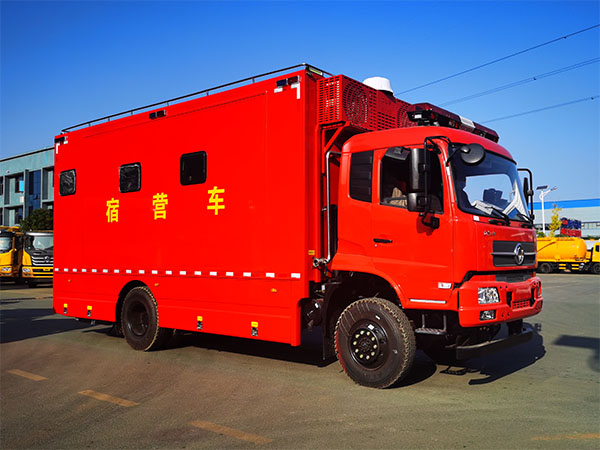

Dongfeng Tianjin 4X2 12 person wilderness camping vehicle
2024-12-21 13:33:41 Source：CLW
Product description
The Dongfeng Tianjin 4X2 12 person wilderness camping vehicle combines luxury camping with convenient transportation. The internal configuration includes 12 comfortable beds, windows, curtains, TV, air conditioning, lighting and other facilities, providing an excellent living experience. The box structure adopts reinforced steel skeleton and insulation filling to ensure stability and insulation. In addition, the chassis performance is excellent, equipped with a 190 horsepower engine and a Fast transmission, providing power and comfort for the journey.
| Product Name |
Dongfeng Tianjin 4X2 12 person wilderness camping vehicle |
| Cab |
Dongfeng Tianjin cab,D560 standard roof cab, capable of accommodating 3 people, arranged in a row of half seats, providing comfort for long-distance driving. |
| Engine |
DDi50E190-60，Dongfeng 190hp |
| Gearbox |
FAST 8-speed gearbox |
| Wheelbase(mm) |
5800(mm) |
| Vehicle dimension(mm) |
10700×2550,2500×3980,3850(mm) |
| Tyre |
275/80R22.5 18P(6+1) |
| Internal configuration data |
As follows |
| 1-Box body part |
The box size is 7200mm (length) x 1290mm (width) x 2500mm (height), equipped with 2.5mm fiberglass skin inside. The internal structure includes a steel skeleton and polyurethane filling, providing strength and insulation performance. |
| 2-Cabin door |
The vehicle is equipped with one set of cabin doors with observation windows, providing safety and visibility. |
| 3-Appearance |
Each side is equipped with a set of skirt edges to enhance the aesthetic and protective appearance of the entire vehicle. |
| 4-Internal configuration |
Provides 12 camping beds in a bunk style, as well as PVC floor mats that provide comfortable and easy to clean flooring. |
| 5-Windows and curtains |
There are 6 windows, including 3 sliding windows on each side with screens, and 6 curtains, providing ventilation, lighting, and privacy protection. |
| 6-Electrical equipment section |
The vehicle is equipped with a 5KW diesel generator, a 32 inch LCD LED TV, 2 sets of 24V ventilation fans, 2 emergency lighting fixtures, 4 ceiling lights, a 3KVA non rack mounted UPS power supply, multiple sets of batteries, 12 flexible reading lights, 12 switches, 12 sockets, a 5KW heater, 2 1.5P wall mounted air conditioners, an electrical control box, and a distribution and control system. |
| 7-Other parts |
including 4 support legs, customized appearance patterns and paint, and 4 1.5KG dry powder fire extinguishers. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng Tianjin 4X2 12 person wilderness camping vehicle
Camping vehicle is a logistics comprehensive support task vehicle specifically designed for personnel to stay and rest outside.
The camping vehicle mainly consists of a second-class car chassis, an extended camping shelter, camping facilities, air conditioning system, film and television system, shower system, waterway system, electrical system, lightning protection system, etc. Can accommodate 8-24 people, with simple grooming and convenience. Having a comfortable sleeping environment and complete sanitary facilities. A camping vehicle is a mobile campsite that provides a resting place for firefighting special agents, meeting the needs of accommodation, reading, and writing. Featuring a comfortable sleeping environment and complete sanitation facilities, the vehicle is agile and reliable, with good environmental adaptability
