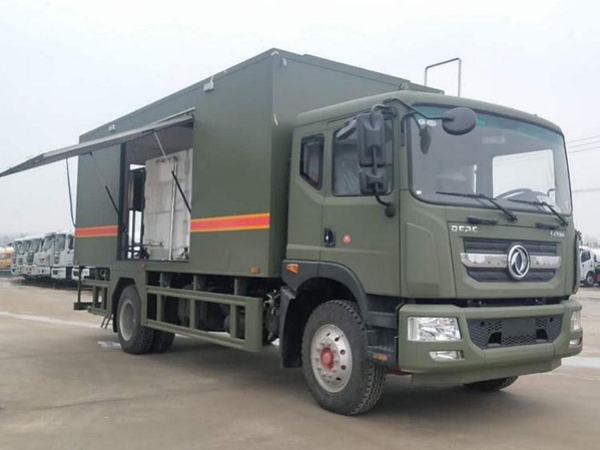

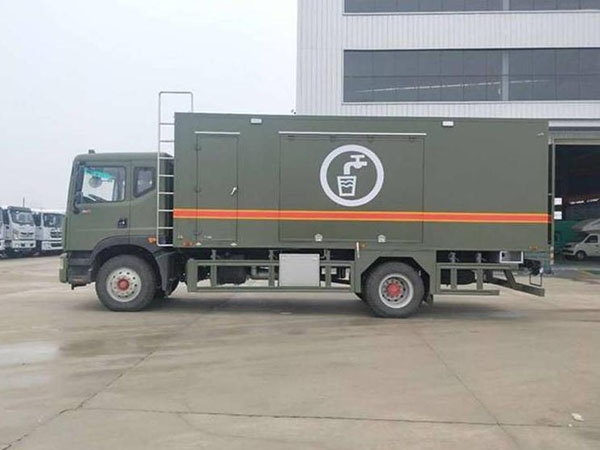

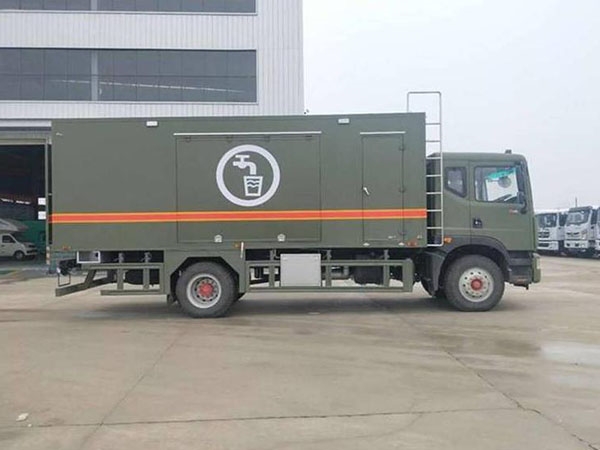

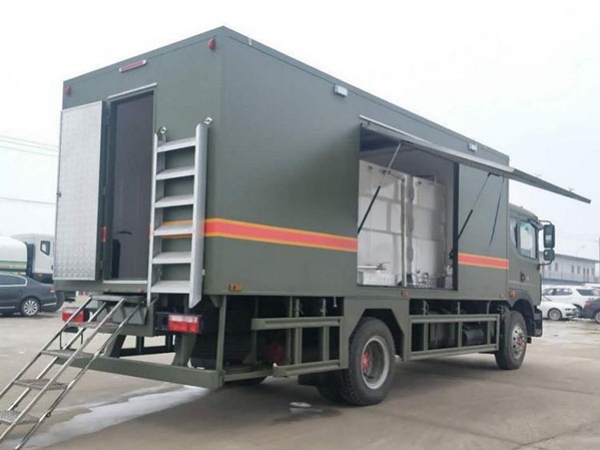

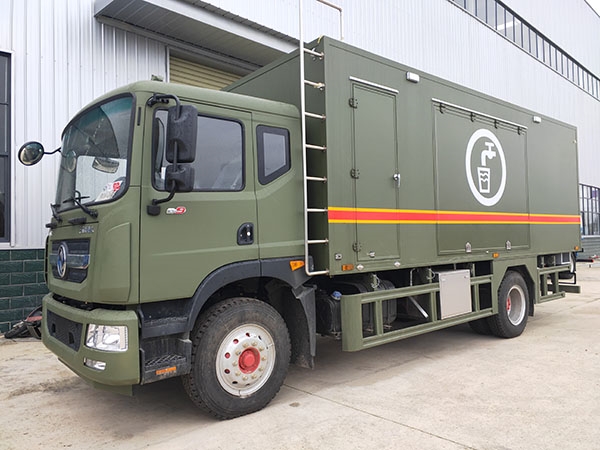

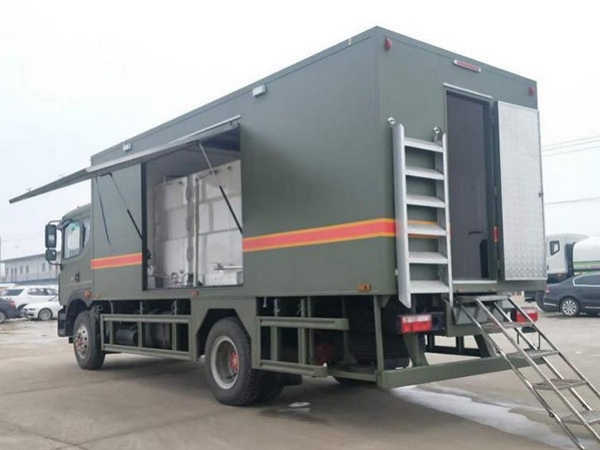

Dongfeng D9 4X2 mobile water purification truck

Product description

The Dongfeng D9 4X2 mobile water purification truck is equipped with an efficient water purification system, which can meet various cleaning, fire extinguishing and other application needs. Equipped with a chassis trusted by the Dongfeng Dorica brand, ensuring stability. The purification equipment of the water purifier adopts advanced technology, which can quickly purify the water source and ensure the provision of high-quality clean water. Its design is reasonable, easy to operate, suitable for various environments, and provides reliable guarantee for cleaning operations.

Product Name	Dongfeng D9 4X2 mobile water purification truck
Engine	B6.2NS6B210, Cummins 210hp
Gearbox	Dongfeng 6-speed gearbox
Wheelbase(mm)	4700(mm)
Vehicle dimension(mm)	8530×2530×3820(mm)
Tyre	295/80R22.5 18PR (6+1)
Main equipment	As follows
1. Vehicle configuration	The vehicle configuration of the water purifier includes the trunk, cabin door, door roller shutter, floor, as well as various storage tanks and pumps and other equipment. Among them, the cabin adopts a self-made design, which is sturdy and durable, and can accommodate various water treatment equipment.
(1)Cabin body	Adopting a self-made design, it has the characteristics of being sturdy and durable, and can accommodate various water treatment equipment.
(2)Cabin doors and rolling shutter doors	Made of high-quality materials to ensure the safety and convenience of internal equipment in vehicles
(3)Floor	Made of oxidation resistant aluminum alloy with aluminum pattern board, it has anti-corrosion properties and is suitable for various working environments.
(4)Storage tanks and pumps	Made of stainless steel materials, including raw water tanks, pure water tanks, activated carbon tanks, and sand tanks, these materials have excellent corrosion resistance and can ensure the safety and stability of water quality.

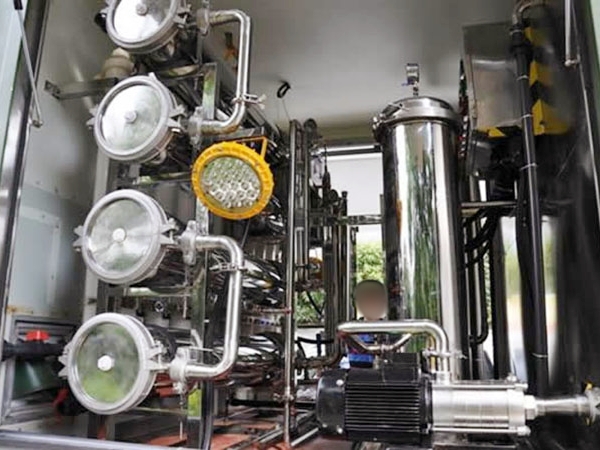

2. Water treatment equipment	Water treatment equipment includes quartz sand filters, activated carbon filters, security filters, reverse osmosis systems, and ozone sterilizers.
(1)Quartz sand filter	The main function of a quartz sand filter is to remove particulate matter such as sediment, rust, and colloidal substances from water.
(2)Activated carbon filter	Activated carbon filters can effectively remove odors, pigments, and organic matter from water, while reducing residual chlorine levels and pesticide pollutants.
(3)The security filter	The security filter is the last filtration device before the reverse osmosis system, which can effectively remove impurities larger than 5um and protect the reverse osmosis membrane from contamination. The reverse osmosis system adopts stainless steel membrane shell and high-quality reverse osmosis membrane to provide deionized water with high desalination rate.
(4)Ozone sterilizers	Ozone sterilizers are widely used in drinking water treatment, which can effectively kill bacteria and viruses and improve the disinfection quality of water.
3. Electrical equipment	Electrical equipment includes diesel generators, waterproof sockets, and submersible pumps. The diesel generator provides 15KW silent power to ensure the power supply of the water purification truck. Waterproof sockets are industrial grade and can work stably in humid environments. Submersible pumps have excellent pumping performance and are suitable for various water sources.
4. Auxiliary configuration	The auxiliary configuration includes water, electricity, oil control systems, and water hoses. The water, electricity, and oil control systems can achieve one click fully automatic control, making operation convenient. Water hoses are used for emergency situations such as firefighting and water supply.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
