Sinotruk Sitrak 4X2 Direct Drinking Water Purifier Truck

Product description

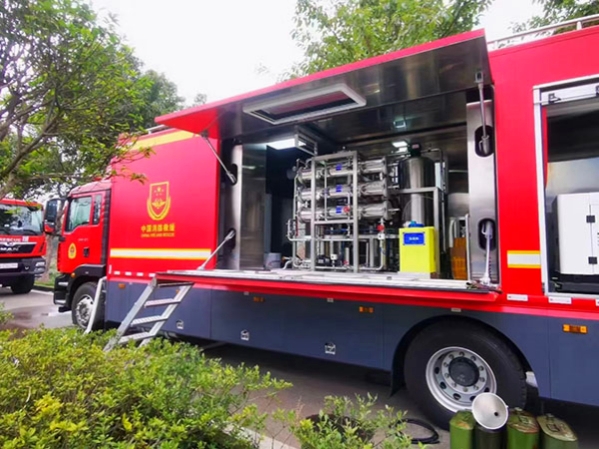

Sinotruk Sitrak 4X2 direct drinking water purifier truckis an efficient professional water purification equipment that uses advanced technology to provide users with clean and safe drinking water. The vehicle is equipped with precision filtration, RO reverse osmosis, and ultraviolet disinfection systems, which can achieve rapid purification of water sources under outdoor conditions, ensuring the hygiene of drinking water quality. The structure is sturdy and easy to operate, making it an ideal choice for urban emergency rescue and outdoor activities.

Product Name	Sinotruk Sitrak 4X2 Direct Drinking Water Purifier Truck
Engine	MC07.27-60, Sinotruk 270hp
Gearbox	9-speed gearbox, manual
Wheelbase(mm)	5600(mm)
Vehicle dimension(mm)	8600,8400×2510×3925,3725(mm)
Tyre	295/80R22.5 18PR (6+1)
Main equipment	As follows
1.Raw water system	The raw water system includes a stainless steel raw water tank with a capacity of 1000 liters, 2 liquid level controllers, 1 raw water pump, 1 inlet valve, as well as related valve groups and connecting pipes.
2.Quartz sand filter	The quartz sand filter includes a stainless steel lined quartz sand filter, a fully automatic controller, upper and lower water distributors, a central tube, fine quartz sand (500 kg bagged), and related pipelines and fittings.
3.Activated carbon adsorber	The activated carbon adsorber includes a stainless steel lined activated carbon adsorber, a fully automatic controller, upper and lower water distributors, a central tube, fine activated carbon (packaged in 125 kg bags), and related pipelines and fittings.
4.Automatic dosing device for scale inhibitors	The automatic dosing device for scale inhibitors includes a metering pump, a dosing box (made of 100 liters of PE material), a composite scale inhibitor (packaged in 25 kg drums), and related connecting pipes.
5.Precision filter	The precision filter includes a stainless steel 40 "7-core filter, PPF filter element (5 microns), low pressure gauge, overpressure gauge, and related regulating valves.
6.Reverse osmosis device	The reverse osmosis device includes a frame, high-pressure pump (stainless steel), pressure vessel (FRP), membrane element (polyamide), etc. The high-pressure pump provides sufficient inlet pressure to ensure the normal operation of the reverse osmosis membrane.
7.Function of reverse osmosis host	The reverse osmosis host has multiple functions, including membrane flushing, pure water and concentrated water flow display, pre - and post membrane pressure display, pure water recovery rate adjustment, etc.

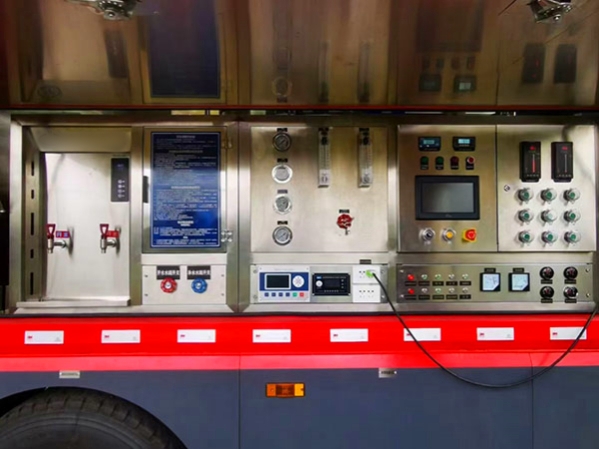

8.Electrical Control System	The electrical control system includes a stainless steel electrical control box, Delixi electrical components, current and voltage displays, motor phase loss and overload protection, as well as other related functions such as membrane flushing devices and conductivity meters.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
