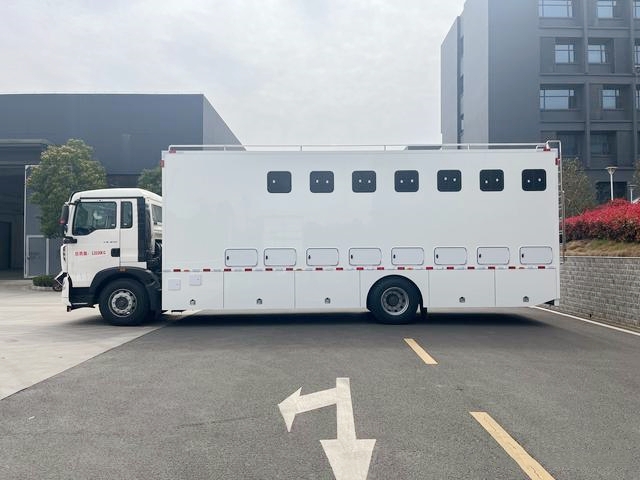

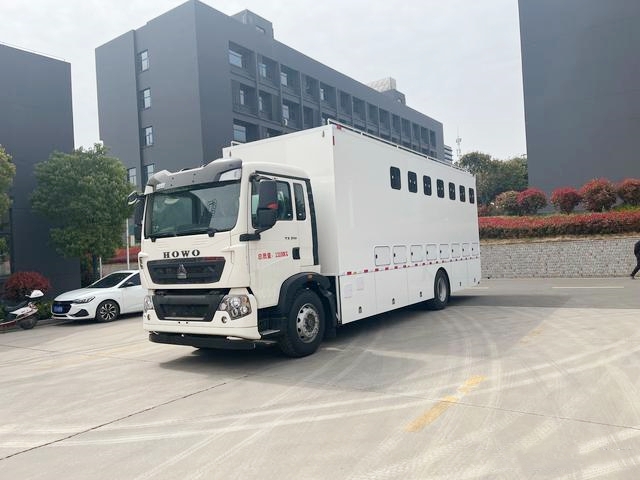

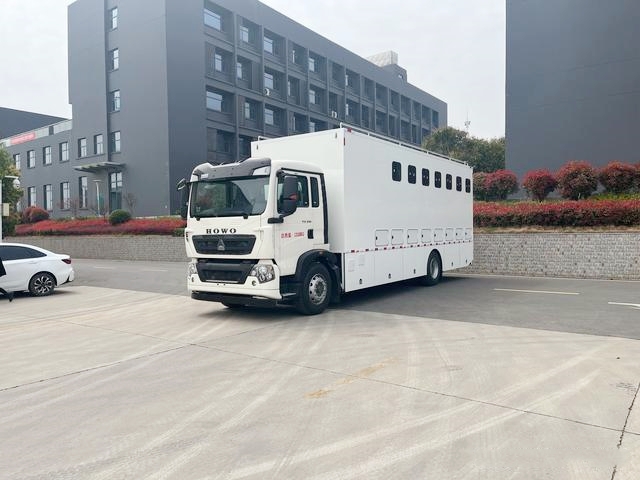

Sinotruk Howo 10-pit-position mobile toilet truck

Chassis configuration:

1.Engine: MC07H.35-60, Sinotruk 350hp,257kW, 7.36L displacement

2.Transmission type: 9-speed gearbox

3.Wheelbase: 5800(mm)

4.Tyre: 10.00R20 18PR , 6+1 spare

5.Other: Sinotruk Howo cab.

Product Name	Sinotruk Howo 10-pit-position mobile toilet truck
Engine	MC07H.35-60, Sinotruk 350hp,257kW, 7.36L displacement
Wheelbase(mm)	5800(mm)
Gearbox	Howo 9-speed gearbox
Vehicle dimension(mm)	10730,10330,10000×2550,2500×3980,3850(mm)
Tire	10.00R20 18PR , 6+1 spare
Drive type	4X2
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
Technical data	As follows
1)Waterway system	The waterway system includes a 500L clean water tank and a 500L sewage tank, both made of 304 stainless steel to ensure water quality and hygiene. In addition, it also includes a water purifier to ensure clean water supply. A water pump is used to provide the required water pressure inside the compartment, as well as a water level display pipe, a water hose, and two rolls of fire hoses (30 meters each) to meet the firefighting needs in emergency situations. These configurations ensure the reliability and convenience of the waterway system.

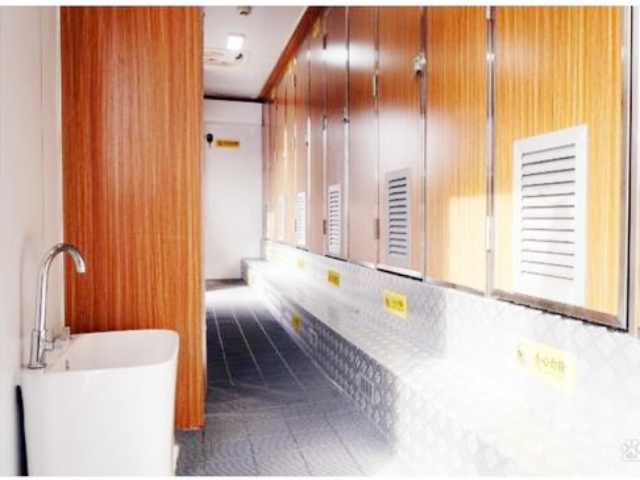

2)Specialized functional system	The specialized functional system includes vacuum equipment and vacuum toilets, providing effective drainage and cleaning functions for the bathroom. In addition, there are hand sinks and mop cleaning sinks to keep the car clean and hygienic. The use of environmentally friendly wood helps to reduce its impact on the environment, reflecting the concept of green environmental protection.
3)Distribution system	The distribution system is equipped with an 8kW diesel silent generator to ensure power supply without external power sources. At the same time, the distribution cabinet, winding reel (optional electric), auxiliary battery (100A), internal and external lighting provide sufficient power support to ensure the normal operation of the equipment in the vehicle.
4)Auxiliary system	The auxiliary system includes a driving recorder (with 360 ° reversing image and reversing radar), a long row of warning lights (1.6 meters), strobe lights, lightning protection grounding system, oil pump, and fire extinguisher (2KG). These configurations not only improve the safety and emergency response capabilities of vehicles, but also meet the needs of special application scenarios.

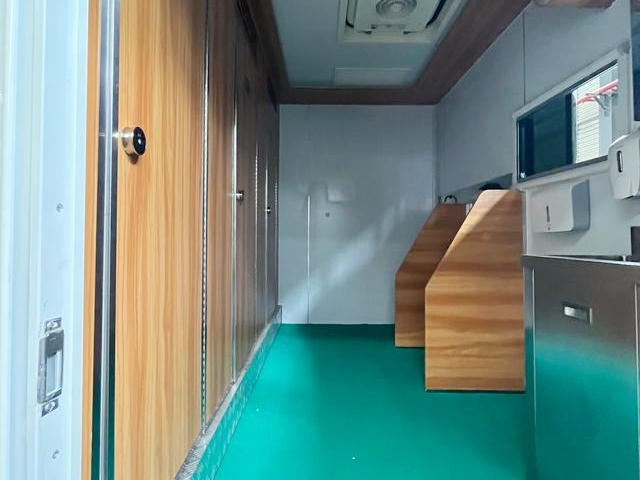

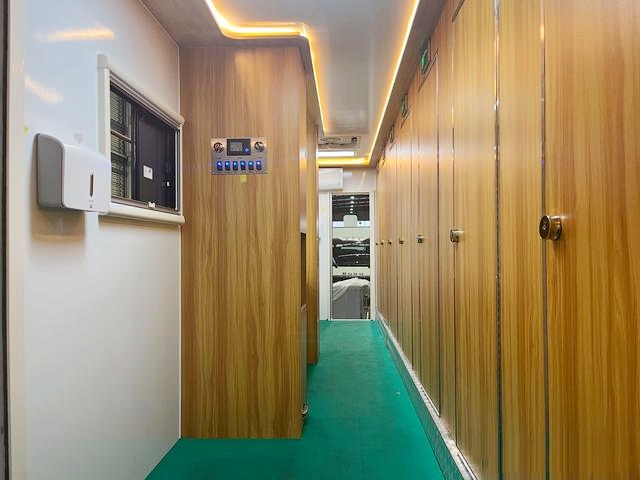

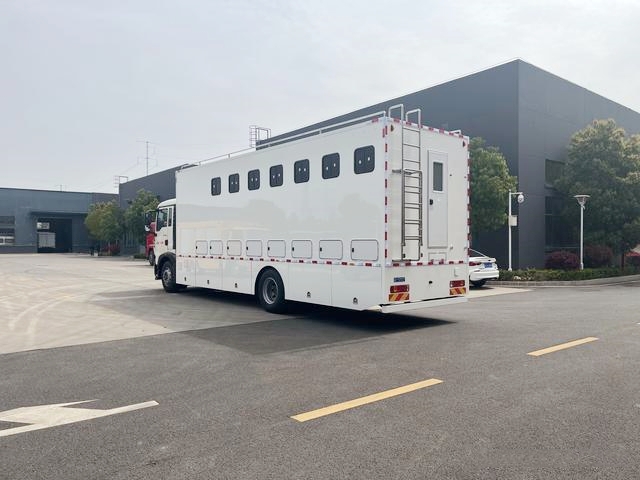

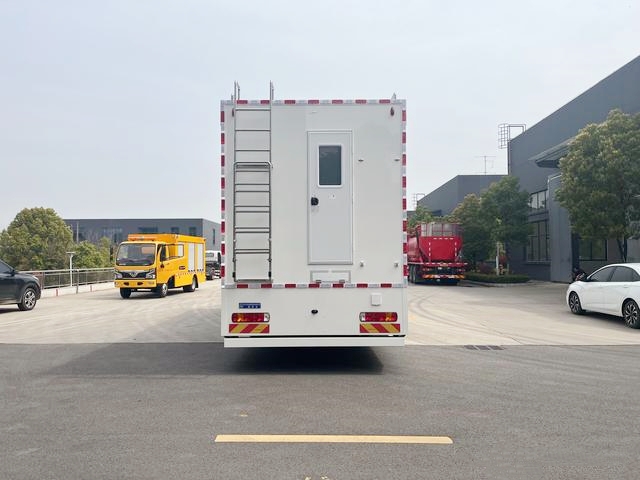

5)Vehicle compartment	The vehicle compartment is equipped with a ventilation sunroof (electric), a pull-out ladder (304 stainless steel), a movable ladder (aluminum alloy material), interior decoration (fiberglass material), and exterior paint (customized according to customer requirements). These configurations provide multifunctional and comfortable space while meeting the personalized needs of users.
