Isuzu 4x2 fire safety publicity vehicle

2024-12-18 14:34:51  Source：CLW

Chassis configuration:

The Isuzu 4HK1-TCG61 engine has a National VI emission of 190 horsepower and can be optionally equipped with a 205 horsepower Isuzu 4HK1-TCG60 engine. It comes with an Isuzu MLD six speed transmission, air conditioning, and directional assistance. The front axle weighs 4 tons and the rear axle weighs 7 tons. It is equipped with ABS and a cut-off brake. The cab can be flipped over and comes standard with 235/75R17.5 tires, with an optional 825R20 tires.


Product Name Isuzu 4x2 fire safety publicity vehicle
Driving type 4X2
Engine 4HK1-TCG61,139kw, 190hp,
Wheelbase(mm) 4475(mm)
Gross vehicle weight(Kg) 7800(Kg)
Curb weight(Kg) 7605(Kg)
Speed 110(km/h)
Fire safety publicity system Video playback system, simulated 119 alarm experience system, simulated fire extinguishing demonstration system, building fire protection facility simulation demonstration system, fire escape education drill system, electrical fire cause clear demonstration system, LED screen display system, power supply guarantee and control system
Vehicle dimension(mm) 8160,8000×2420×3550,3400,3200(mm)
Notice The above information is for reference only, and vehicles can be customized depending on your requirements.
  • 1
  • 2
  • 3
  • 4
  • 2
  • 5
  • 7
  • 6
  • 8
  • 9

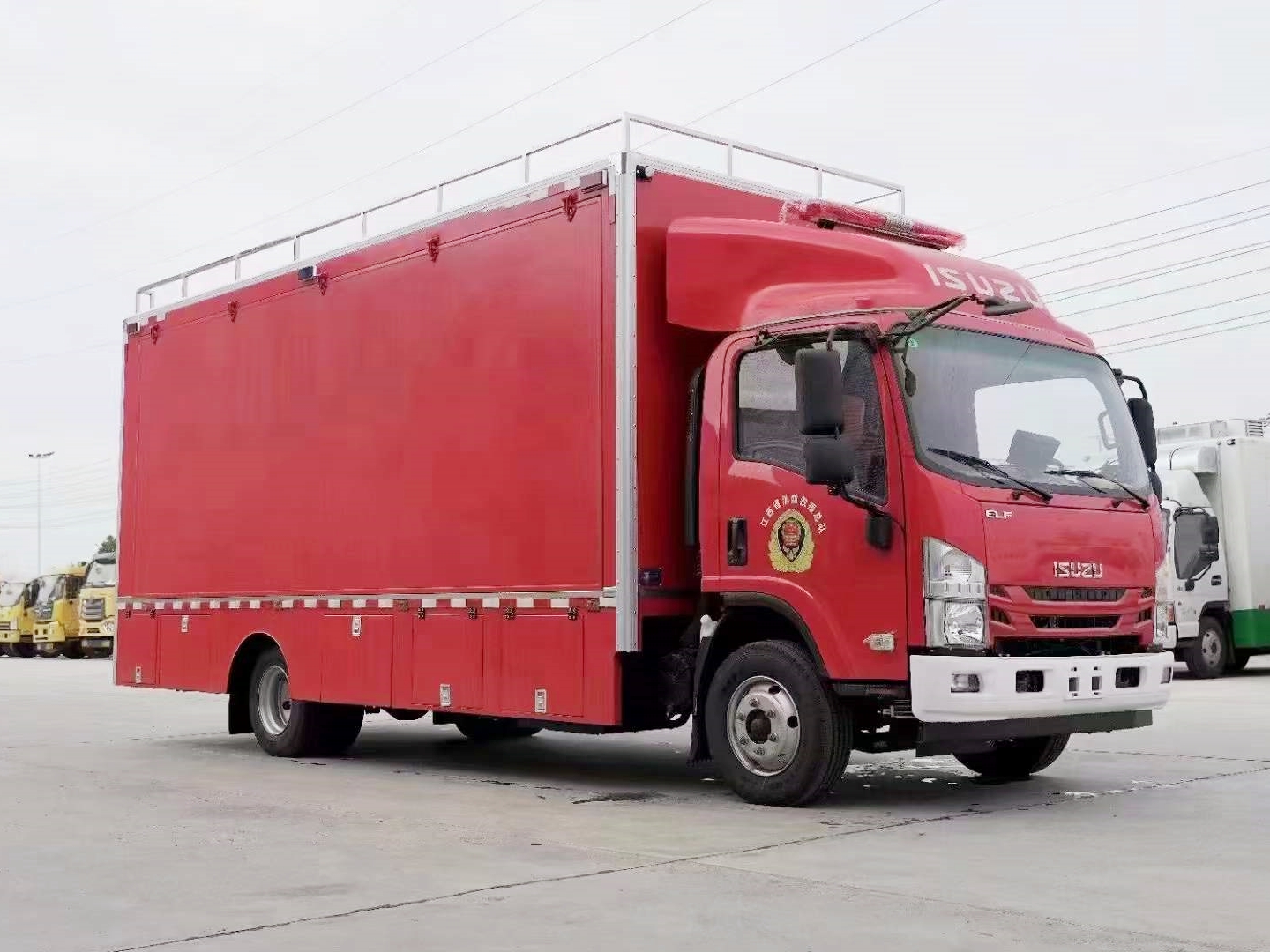

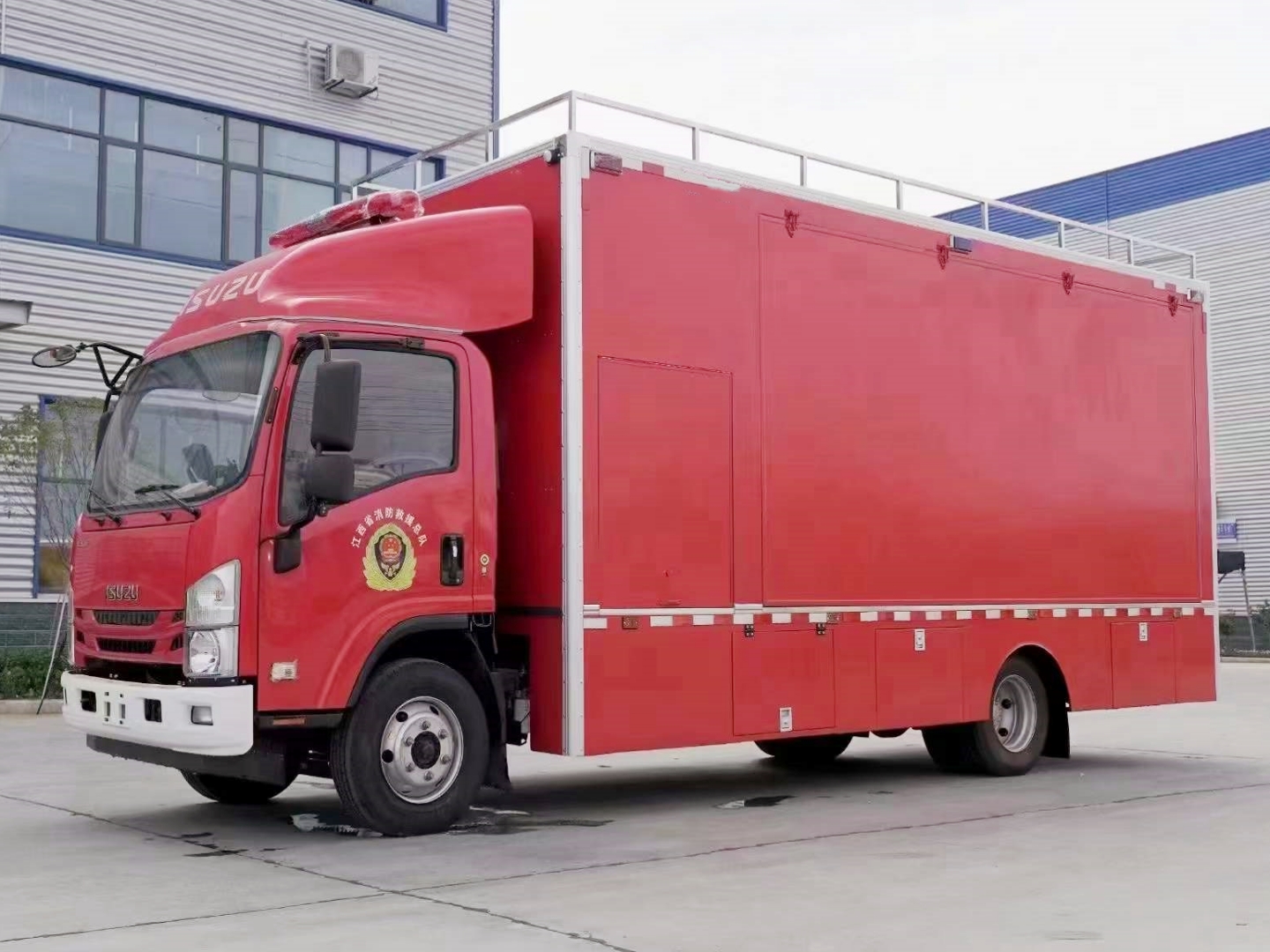

Isuzu 4x2 fire safety publicity vehicle

Fire safety publicity vehicle is a type of fire truck used to promote fire safety knowledge to the public. Mainly equipped with various devices for simulating disaster scenes.

Installation configuration:

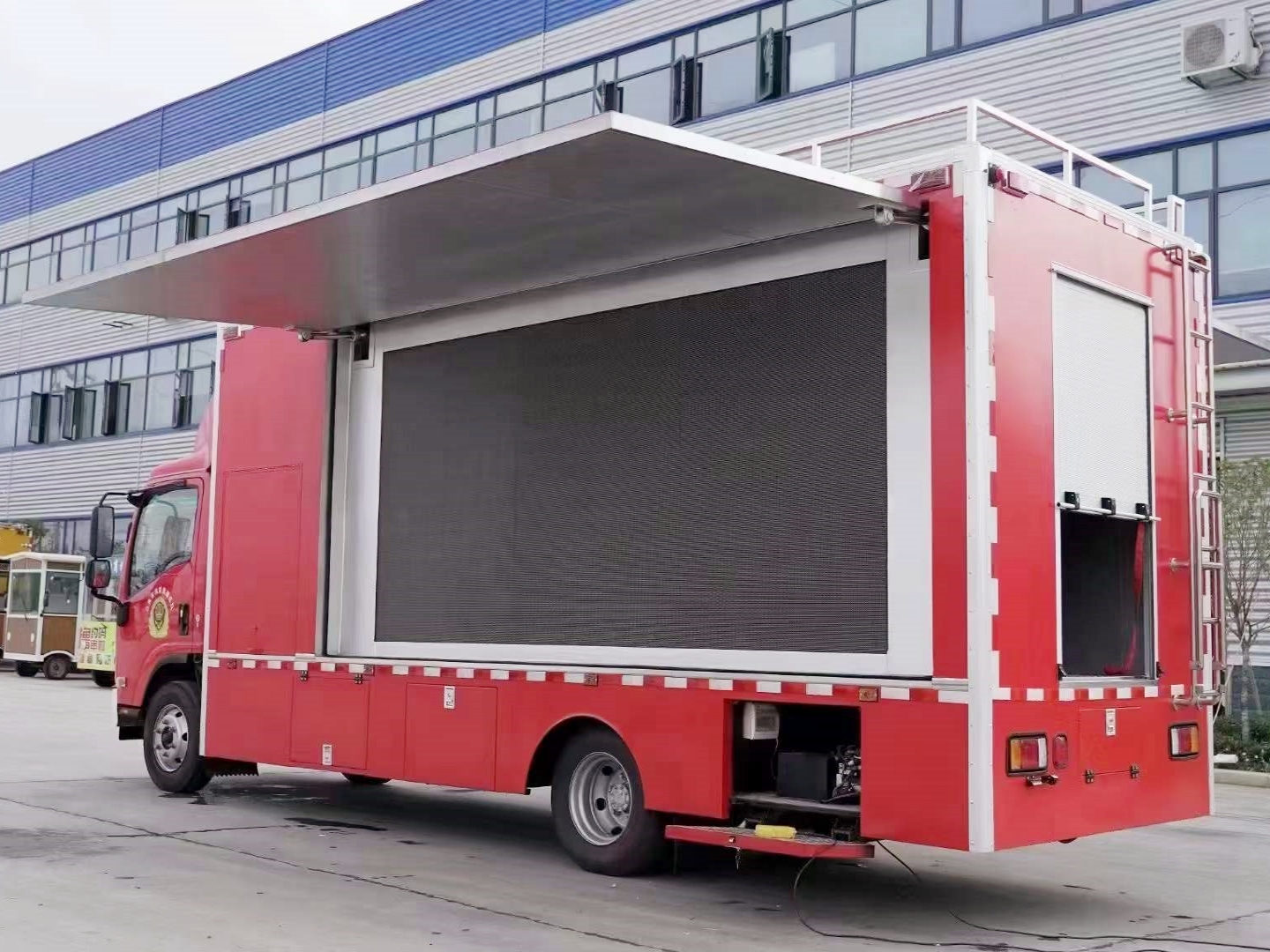

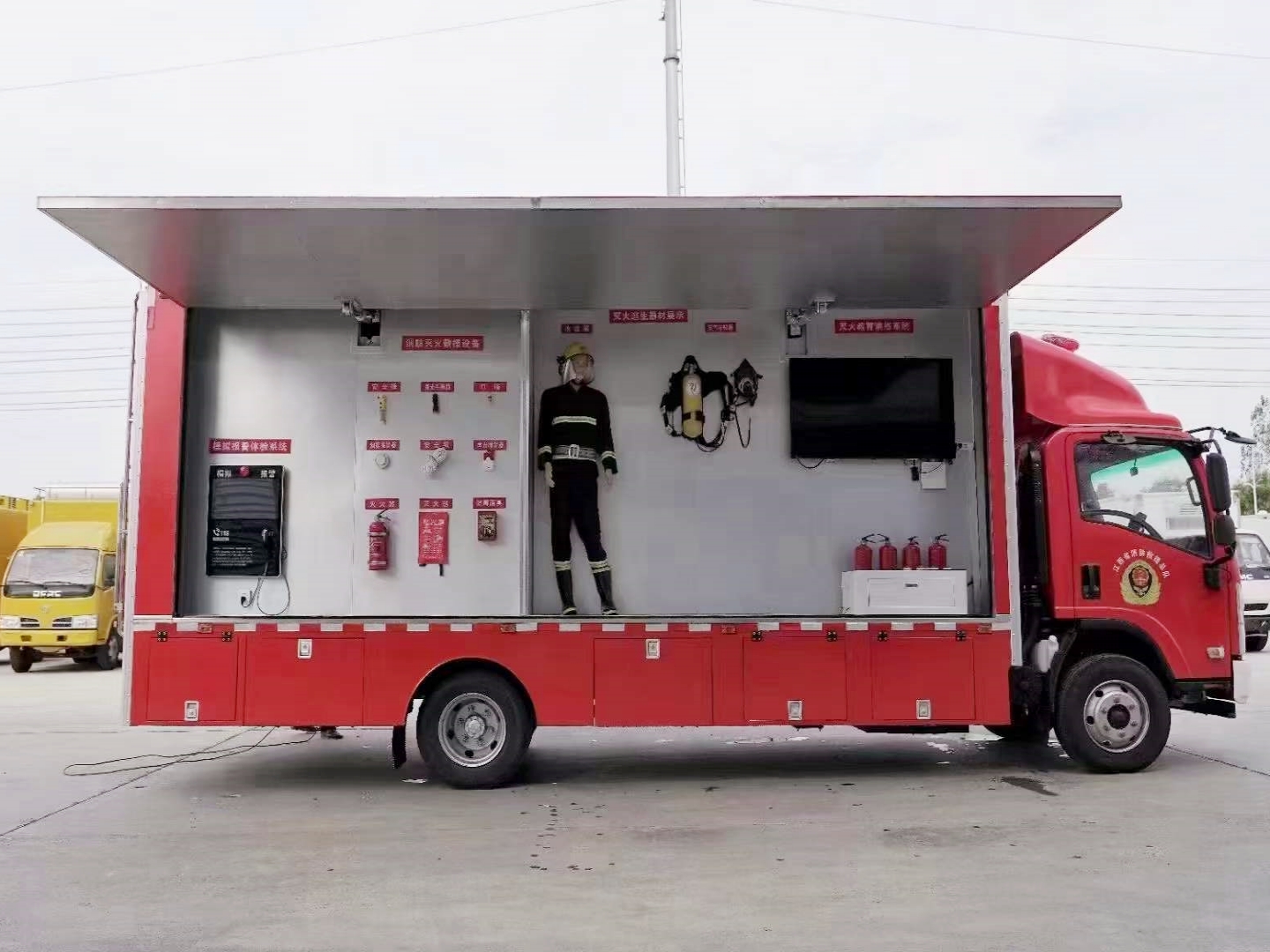

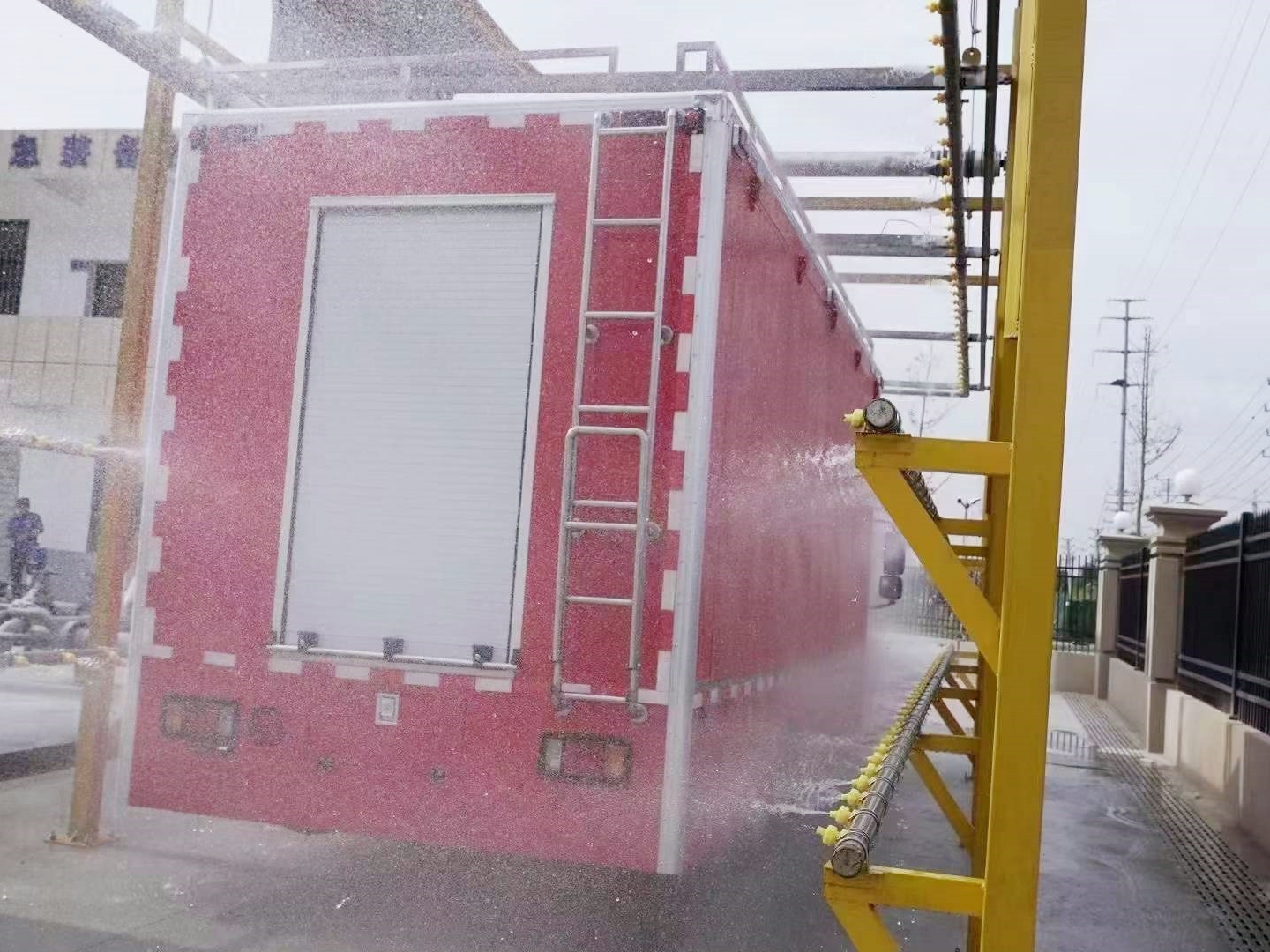

The box frame is made of high-quality carbon steel, with an external cold plate skin and an internal aluminum-plastic panel interior. The floor is made of anti slip aluminum patterned panels, and the entire frame is treated with electrophoretic primer. The promotional module can be equipped with an optional LED advertising display screen, a silent generator set, an external power supply, and a computer amplifier sound column! Simulate 119 alarm system, handheld fire extinguisher simulation fire extinguishing experience system, fire hazard investigation system, electrical fire cause platform, fire identification system, fire equipment display system, lighting fixtures, hydraulic flippers, on-board tools, etc.
