Iveco Double Row Flood Relief Vehicle
2024-11-20 14:06:07 Source：CLW
Chassis configuration:
1. Engine: F1AE8481D,95KW, 130HP
2.Transmission type: 5-speed gearbox
3.Wheelbase: 3300(mm)
4.Tyre:195/75R16LT 10PR,195/75R16C 107/105R, 6+1spare tire
| Product Name |
Iveco Double Row Flood Relief Vehicle |
| Gross vehicle weight(Kg) |
4490(Kg) |
| Curb weight(Kg) |
4100(Kg) |
| Wheelbase(mm) |
3300(mm) |
| Overall Dimension(mm) |
5995×2050×2570(mm) |
| Engine brand & model |
F1AE8481D,95KW, 130HP |
| Axle Quantity |
2 |
| Transmission Type |
5-speed gearbox |
| Tire Spec. & size |
195/75R16LT 10PR,195/75R16C 107/105R, 6+1spare tire |
| Elevating lighting fixture |
Height 1.2 meters, 360 ° rotation, 4x1000w |
| Internal structure of the box |
Reasonable design (customizable according to customer requirements) |
| Generator Set |
Rated voltage: three-phase four wire voltage 380V ± 10%, two-phase voltage 220V ± 10% |
| Remote water supply system |
The drainage system has a stepless speed regulation function, and the displacement of the submersible pump can be adjusted during operation; Single pump flow rate: 500m ³/h, head 7-15m; When the flow rate is 500m ³/h, the head should not be less than 10m, and the efficiency of the electric pump should be ≥ 52%, The energy efficiency level of the electric pump meets the second level energy efficiency level |
| Kindly reminder |
The above information is for reference only, and vehicles can be customized according to customer requirements. |

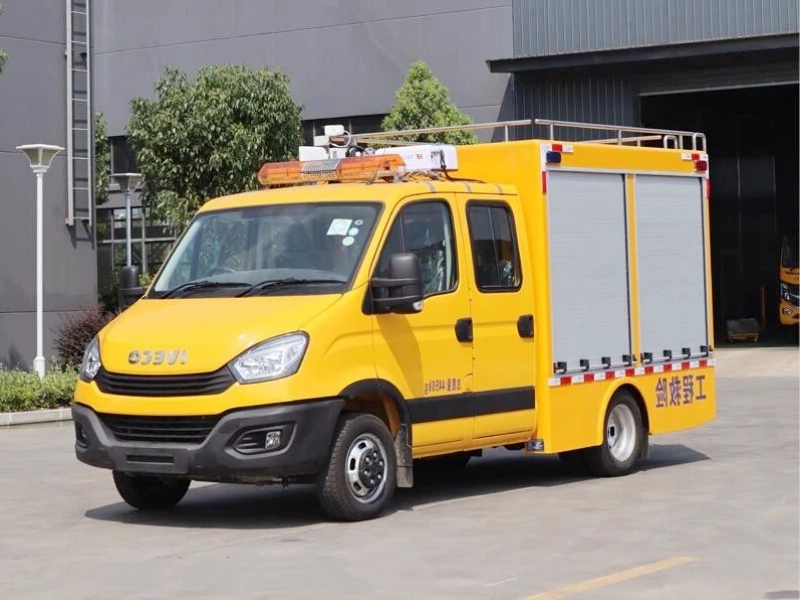

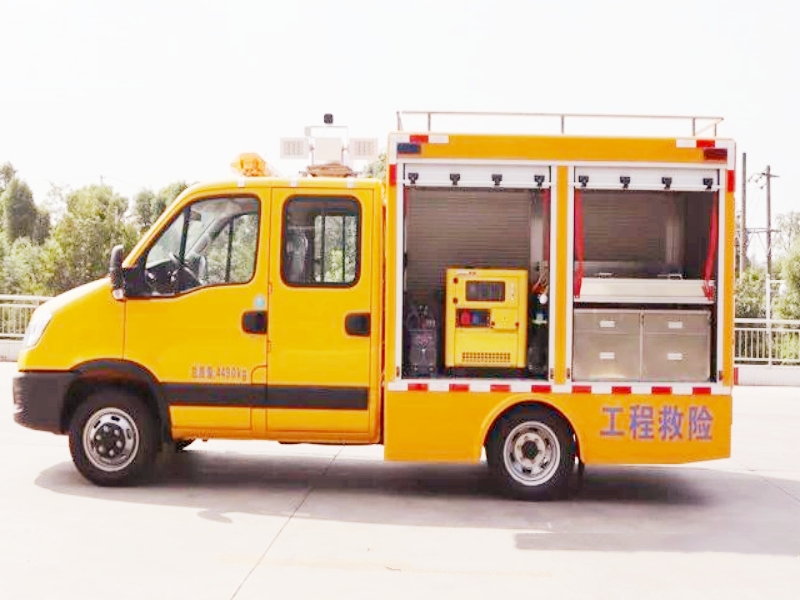

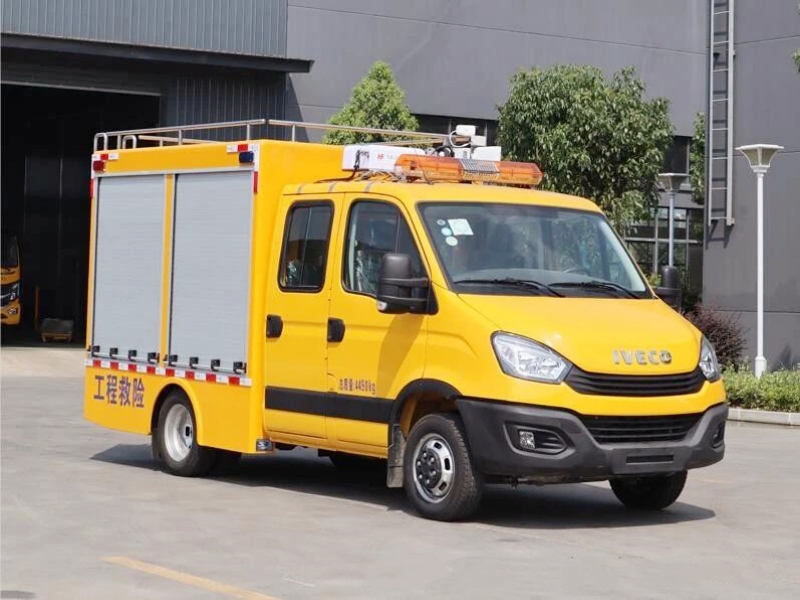

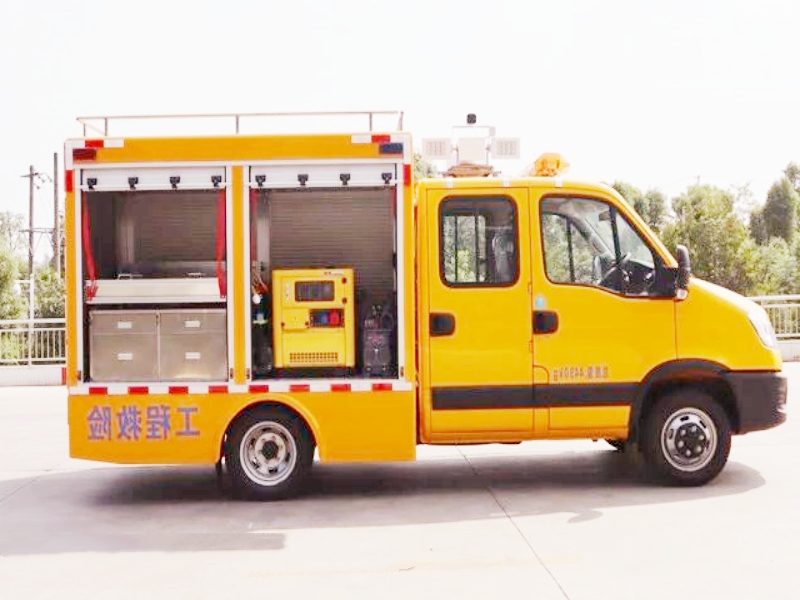

Iveco Double Row Flood Relief Vehicle
The flood relief vehicle is a special type of vehicle specifically designed for responding to floods and disaster relief, with strong drainage capabilities and multiple functions. It is usually equipped with an efficient hydraulic system and a high-power drainage pump, which can quickly remove a large amount of accumulated water. It is suitable for urban waterlogging, underground garage drainage, municipal pipeline repair drainage, subway tunnel emergency drainage and other scenarios.
Product parameter
