| Product Name |
Iveco Oba 4x4 makeshift ambulance |
| Gross vehicle weight(Kg) |
3855(Kg) |
| Curb weight(Kg) |
3400(Kg) |
| Rated passenger capacity |
7 people (including stretcher capacity) |
| Wheelbase(mm) |
3310(mm) |
| Overall Dimension(mm) |
5916×2100×2700(mm) |
| Engine brand & model |
SOFIM8140.43S6， 129hp |
| Fuel type |
diesel |
| Axle Quantity |
2 |
| Transmission Type |
Five speed manual transmission |
| Tire Spec. & size |
255/85R16LT 8PR, 4+1 spare |
| Cab |
Iveco Oba cab |
| Medical warning appearance |
As follows |
| Body structure |

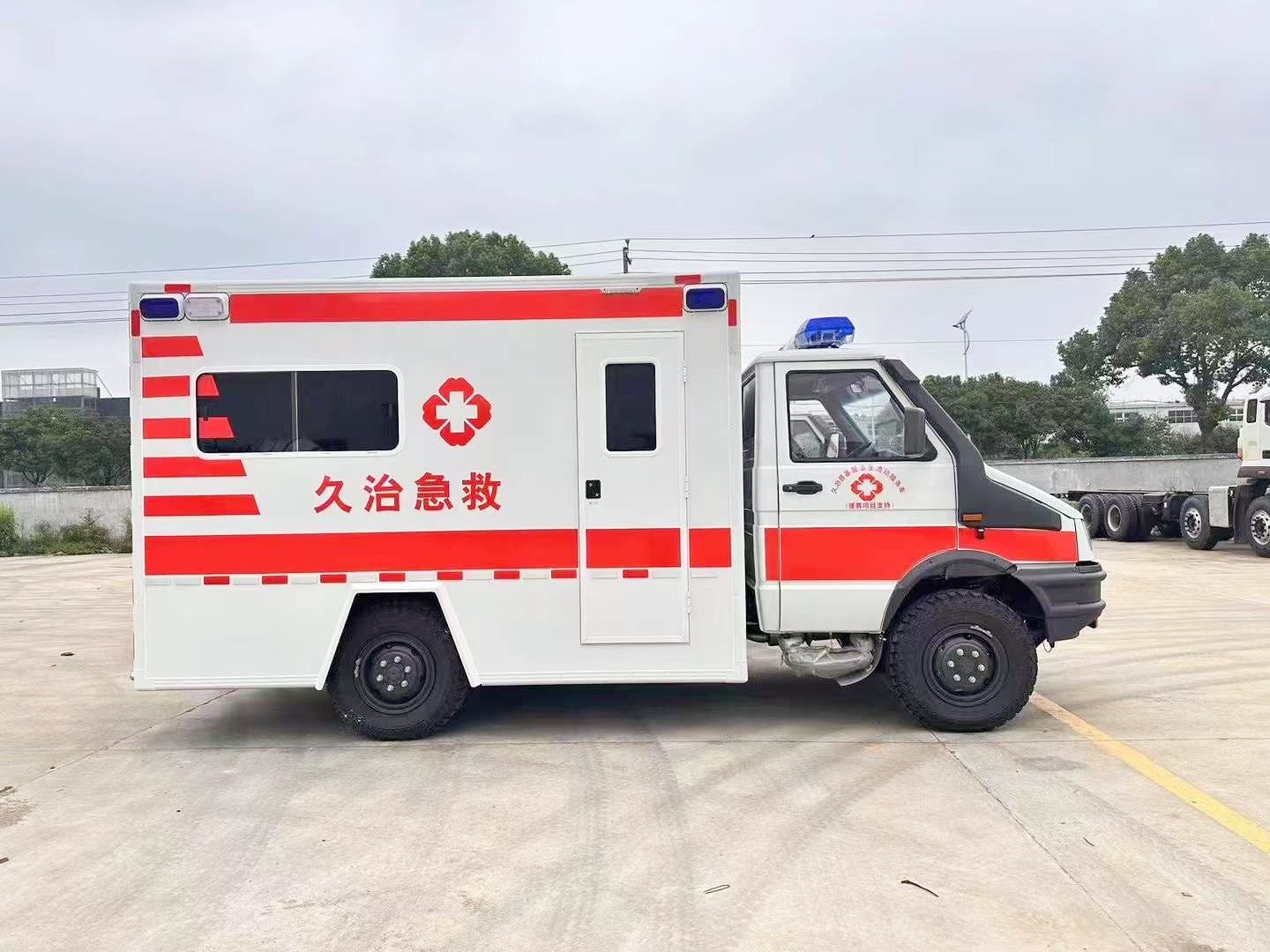

Adopting a steel reinforced frame structure design, it is safe and reliable. The right side of the vehicle has a swing door, and the rear end adopts a double opening tailgate structure with a large opening width, which facilitates the up and down of medical personnel and stretchers. |
| Vehicle appearance |

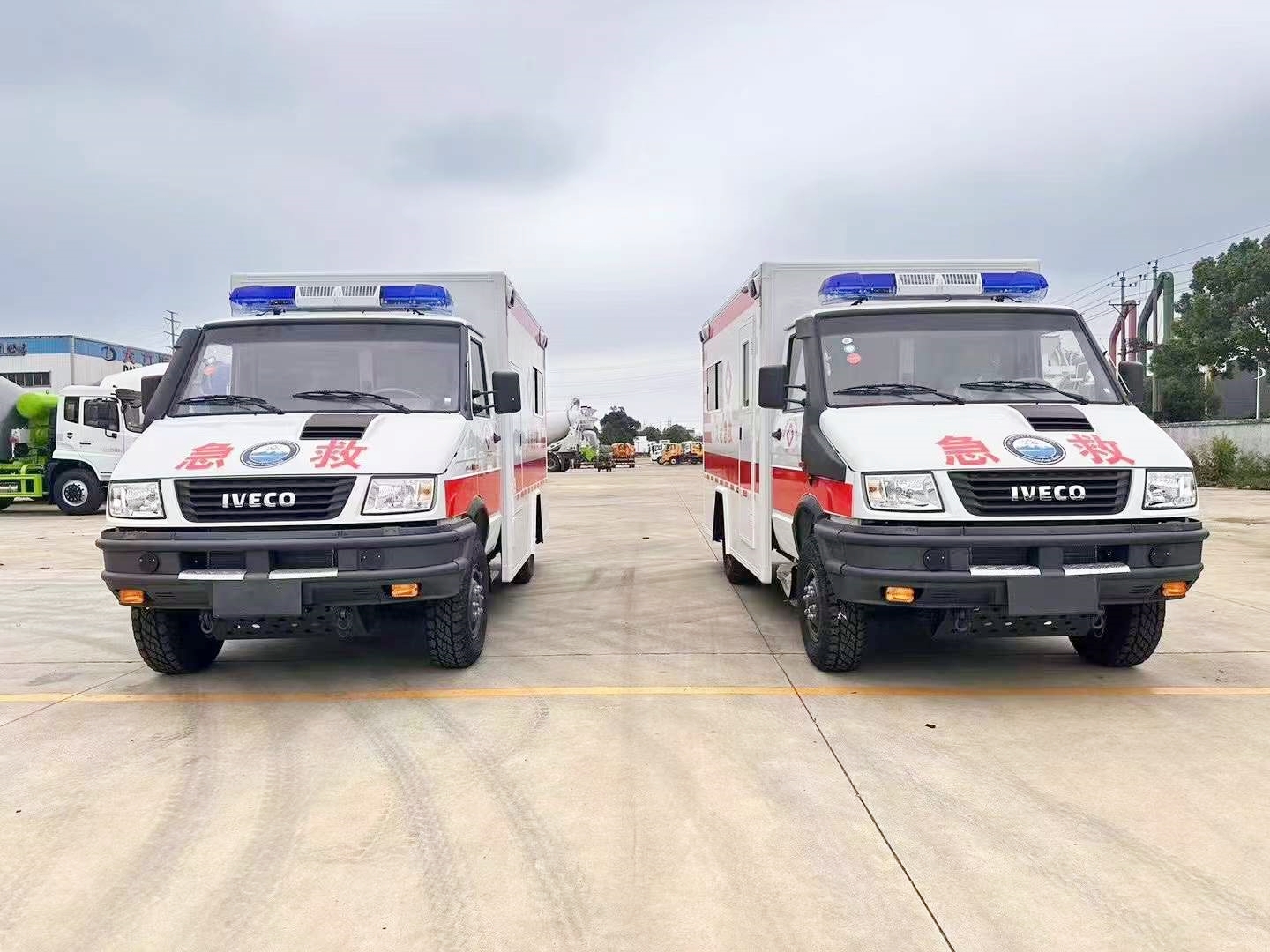

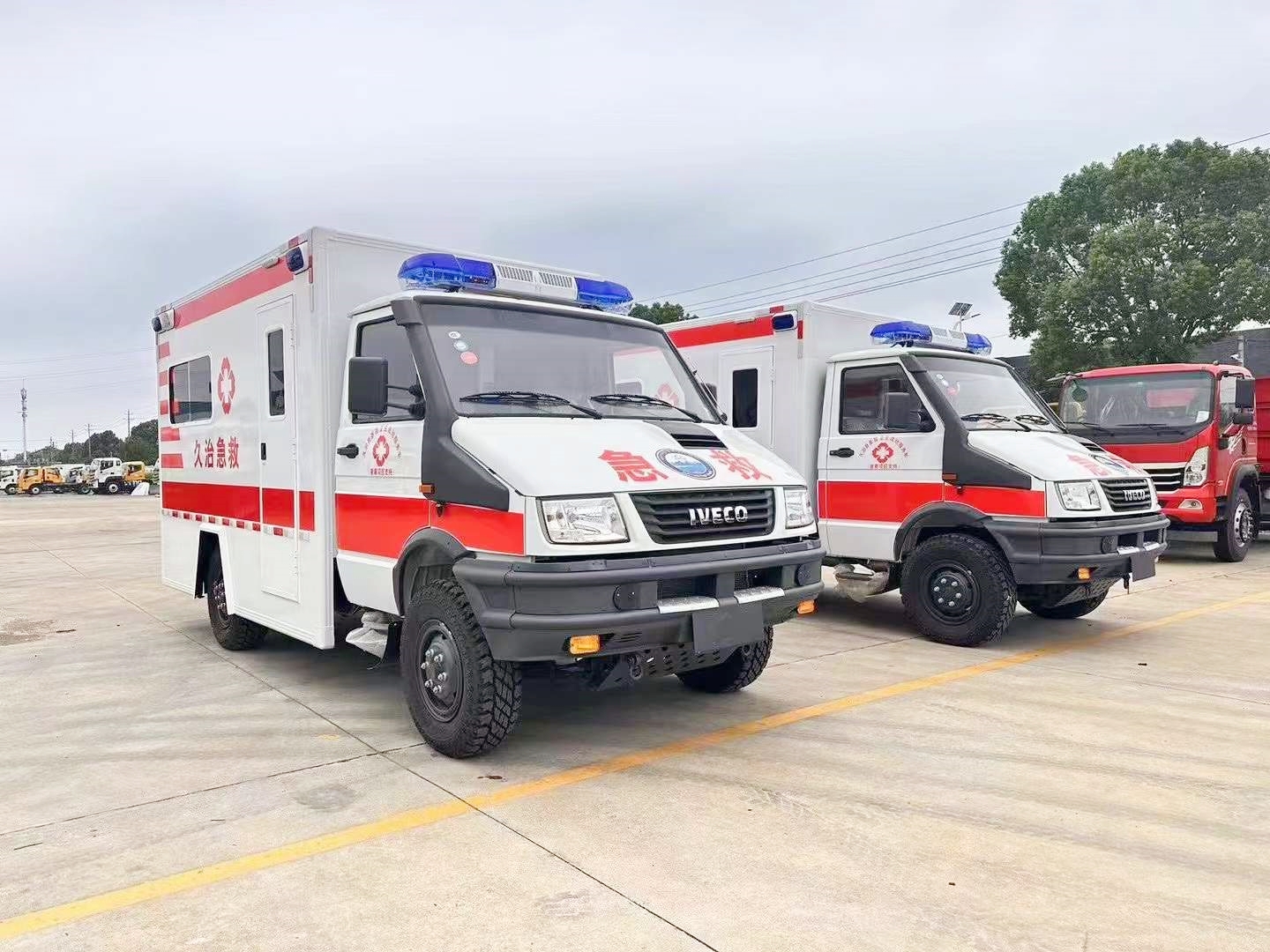

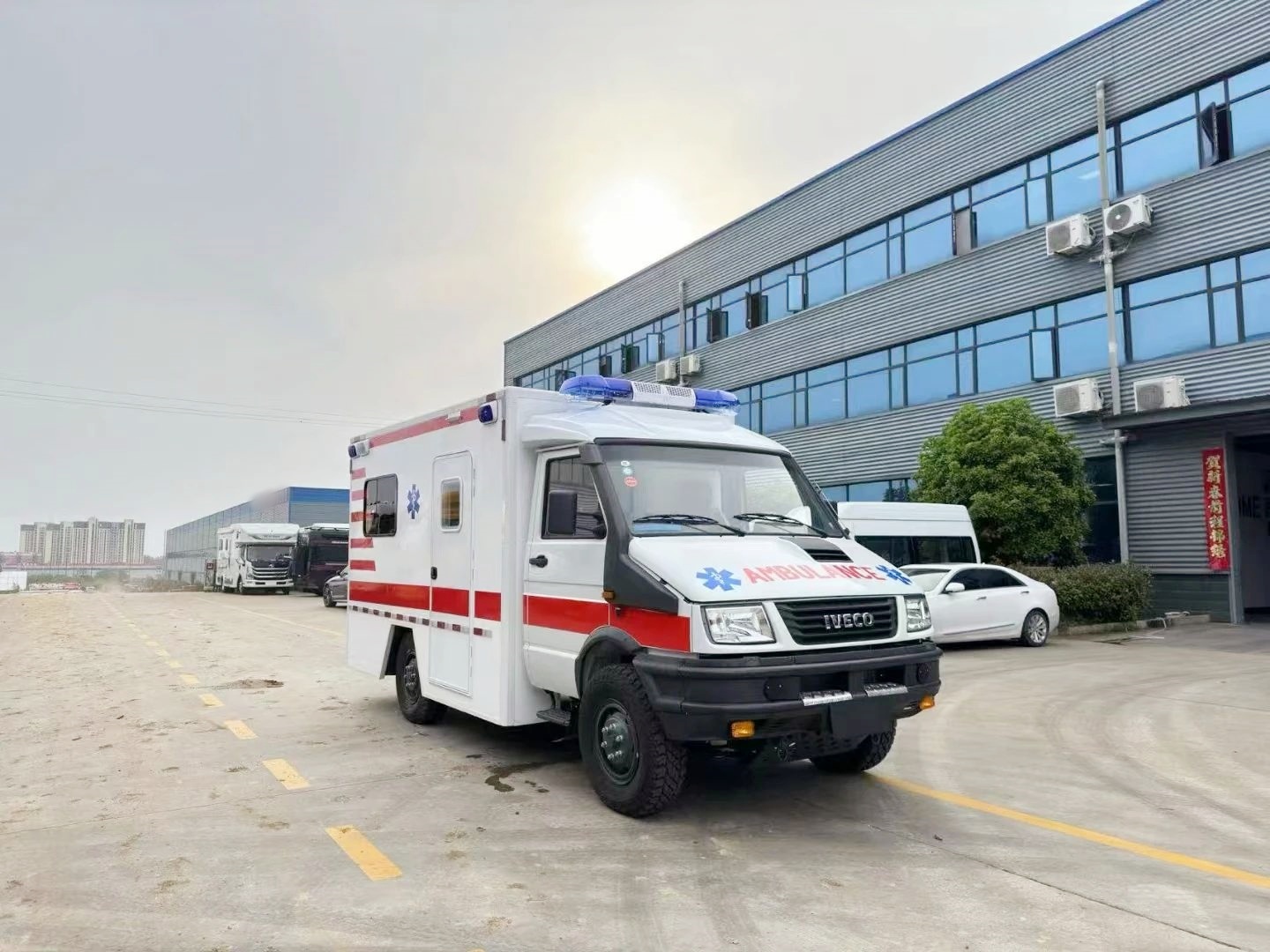

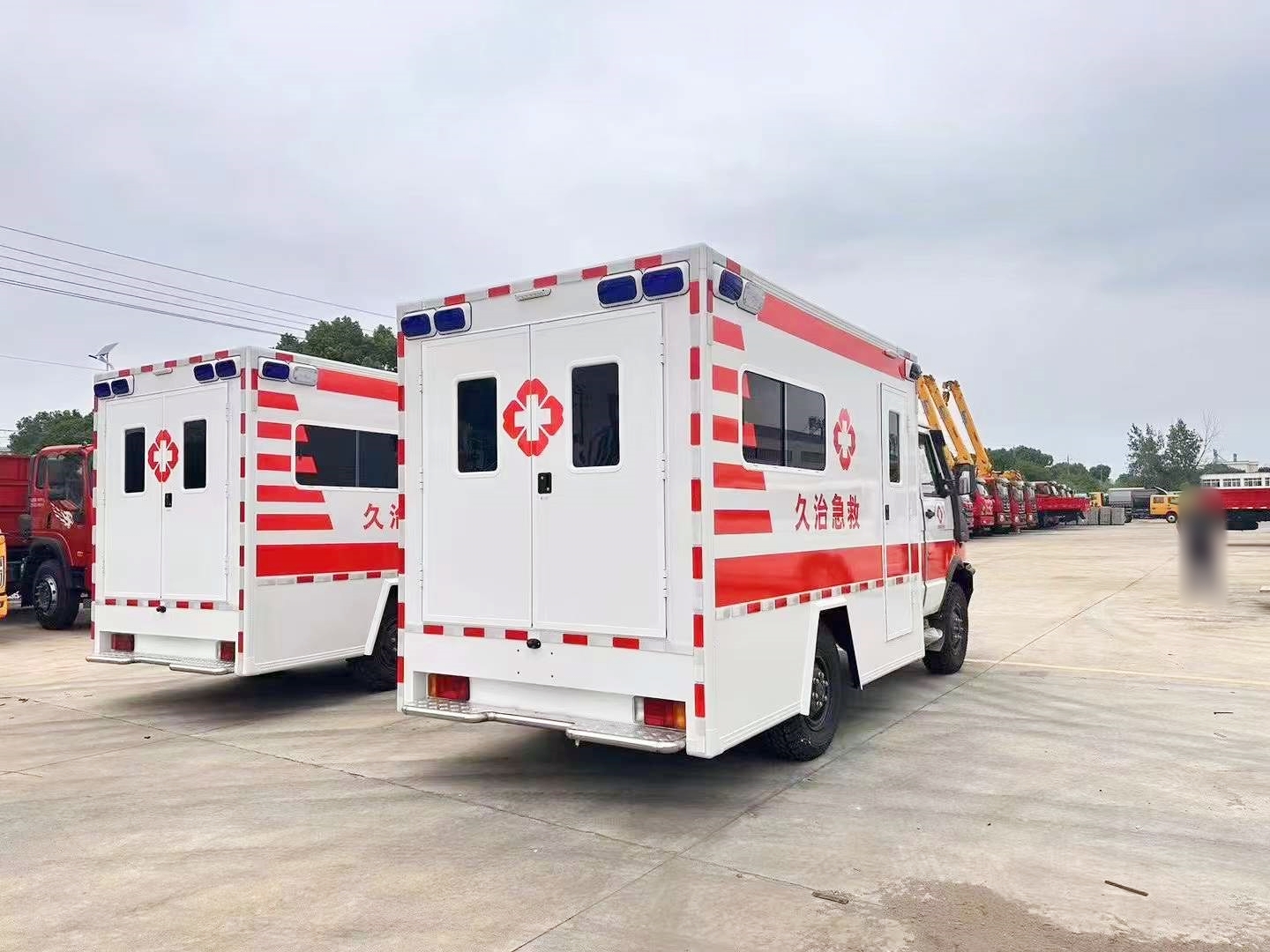

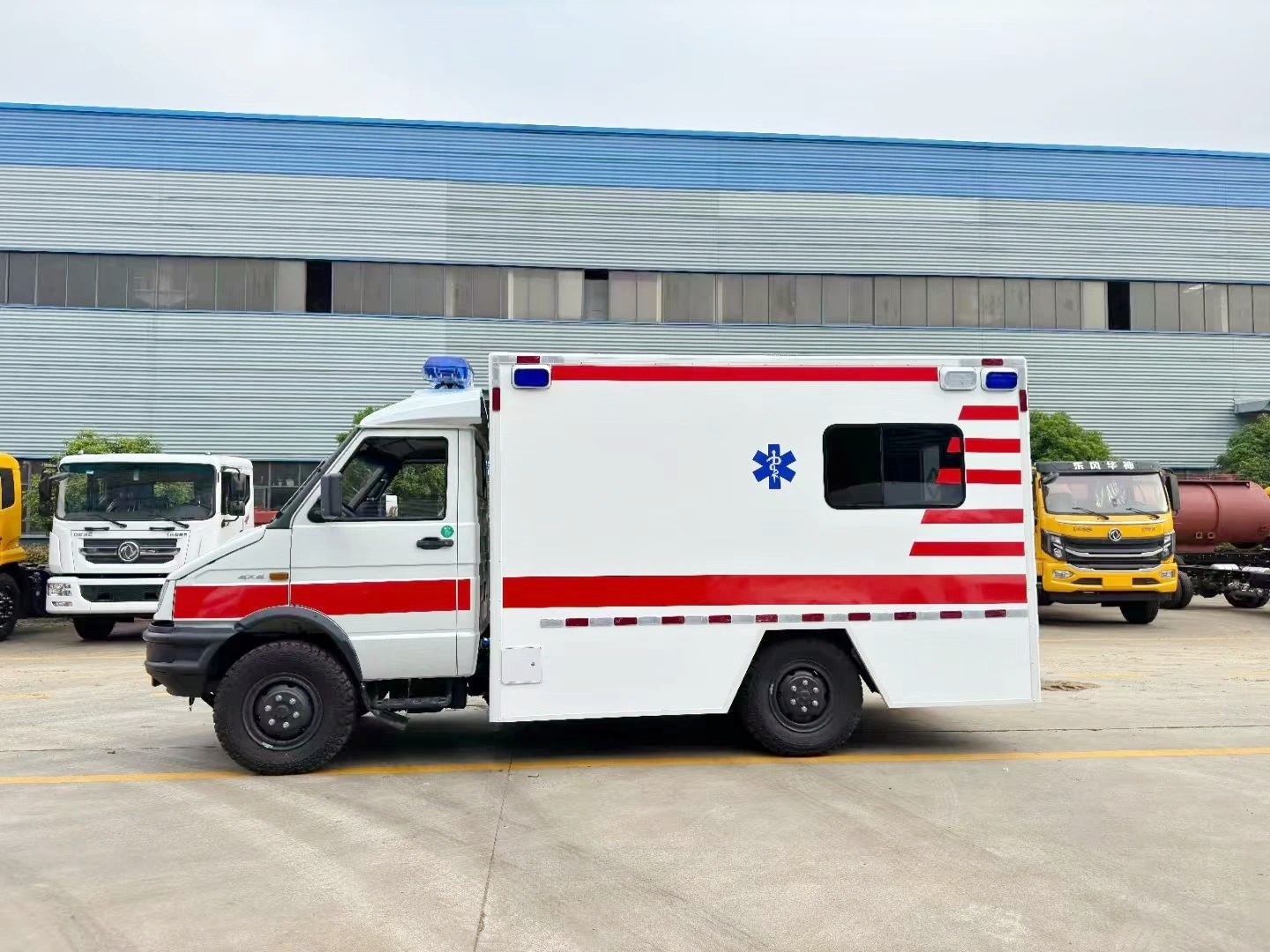

The entire body is white, with red cross logos affixed to the front, sides, and rear doors, and body color strips affixed around the edges. The colors are bright and eye-catching, providing effective warning. The medical cabin glass is covered with black privacy film, effectively protecting patient privacy. |
| Warning lights |

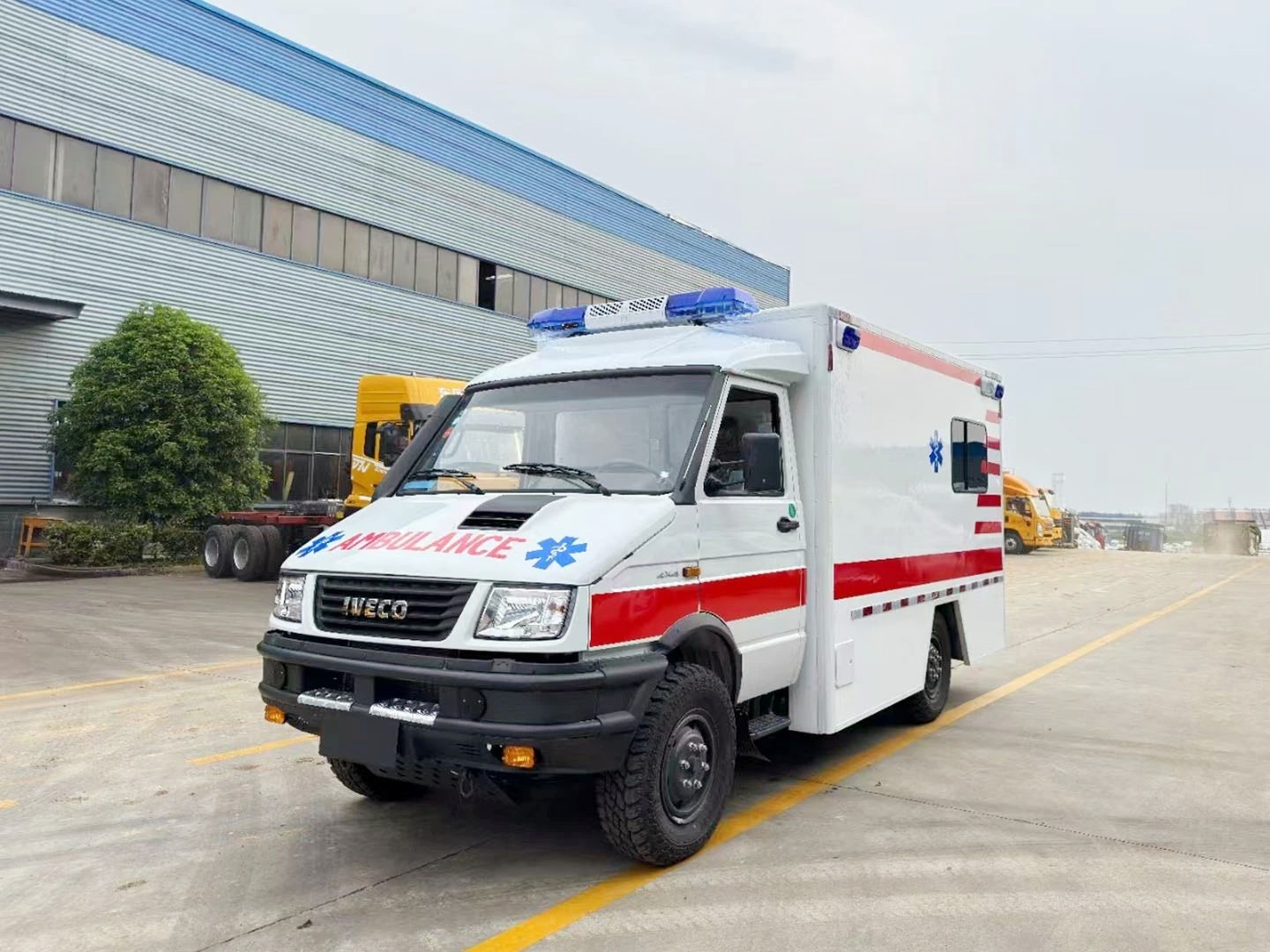

Streamlined reverse flow hood processing font integrated LED alarm light assembly, alarm horn power of 100W, wire controlled controller. Install blue flashing lights on both sides and at the rear to provide effective warning. |
| Medical cabin rescue facilities |
As follows |
| Rescue system |

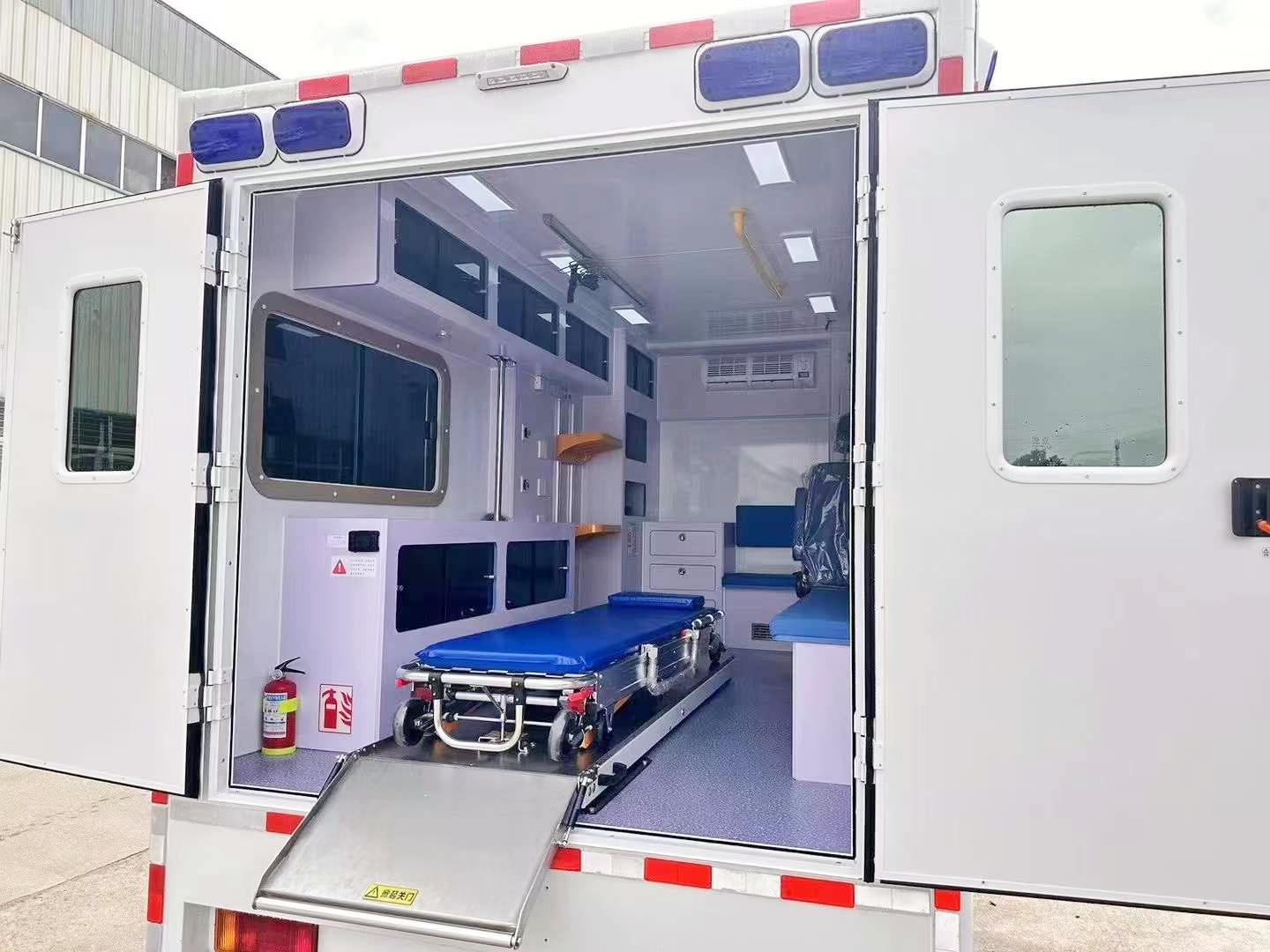

Automatic boarding stretcher: The stretcher is made of high-strength aluminum alloy, with a PVC waterproof sponge mattress and an adjustable backrest; The thickened oval leg tubes, evenly distributed auxiliary wheels on all sides, and aluminum blocks greatly increase the load-bearing capacity of the derrick, making it easy for only one person to complete the boarding process. Stretcher platform: Made of high-quality stainless steel material, it assists in loading and unloading stretchers. Infusion rack: Install one set of aluminum alloy guide rail infusion rack on the top of the medical cabin, including two folding hooks. Rescue system Automatic boarding stretcher: The stretcher is made of high-strength aluminum alloy, with a PVC waterproof sponge mattress and an adjustable backrest; The thickened oval leg tubes, evenly distributed auxiliary wheels on all sides, and aluminum blocks greatly increase the load-bearing capacity of the derrick, making it easy for only one person to complete the boarding process. Stretcher platform: Made of high-quality stainless steel material, it assists in loading and unloading stretchers. Infusion rack: Install one set of aluminum alloy guide rail infusion rack on the top of the medical cabin, including two folding hooks. |
| Medical oxygen control system |
Two 10L steel oxygen cylinders with a nominal pressure of 15MPA (lightweight, easy to install and replace), equipped with a gas manifold. The gas flows out from a single cylinder, passes through a metal hose connected to it, enters a common manifold, and flows through a single pressure reducer before being stably delivered to the gas terminal, two oxygen terminals, a ventilator interface, and a wall mounted oxygen inhaler at a set pressure. The patient can control the oxygen output during oxygen inhalation and is equipped with a humidification bottle to provide moist oxygen, which is more conducive to the patient |
| Medical Electrical System |
As follows |
| Light |
6 12V cabin lighting fixtures, stable light source, large illumination area, 2 infusion spotlights. |
| Inverter |
Vehicle mounted sine wave 1000W, with stable frequency, voltage, and output power, providing support for onboard equipment Power supply; 220V * 3/12V * 1 multifunctional socket (can connect two/three holes, AC/DC dual-use). |
| sterilizing lamp |
1 intelligent timed ultraviolet disinfection to ensure hygiene and safety inside the cabin. |
| Air Circulation System |
As follows |
| Air conditioning/warm air |
1 set of rear air conditioning and rear warm air unit, with independent control of heating and cooling, and reasonable adjustment of cabin temperature according to needs. |
| Exhaust fan |
Install a set of DC12V multifunctional ventilation fans with suction and exhaust on the roof of the car, which can effectively ensure efficient air circulation in the medical cabin. |
| Medical cabin cabinets/interior configuration |
As follows |
| Box assembly |

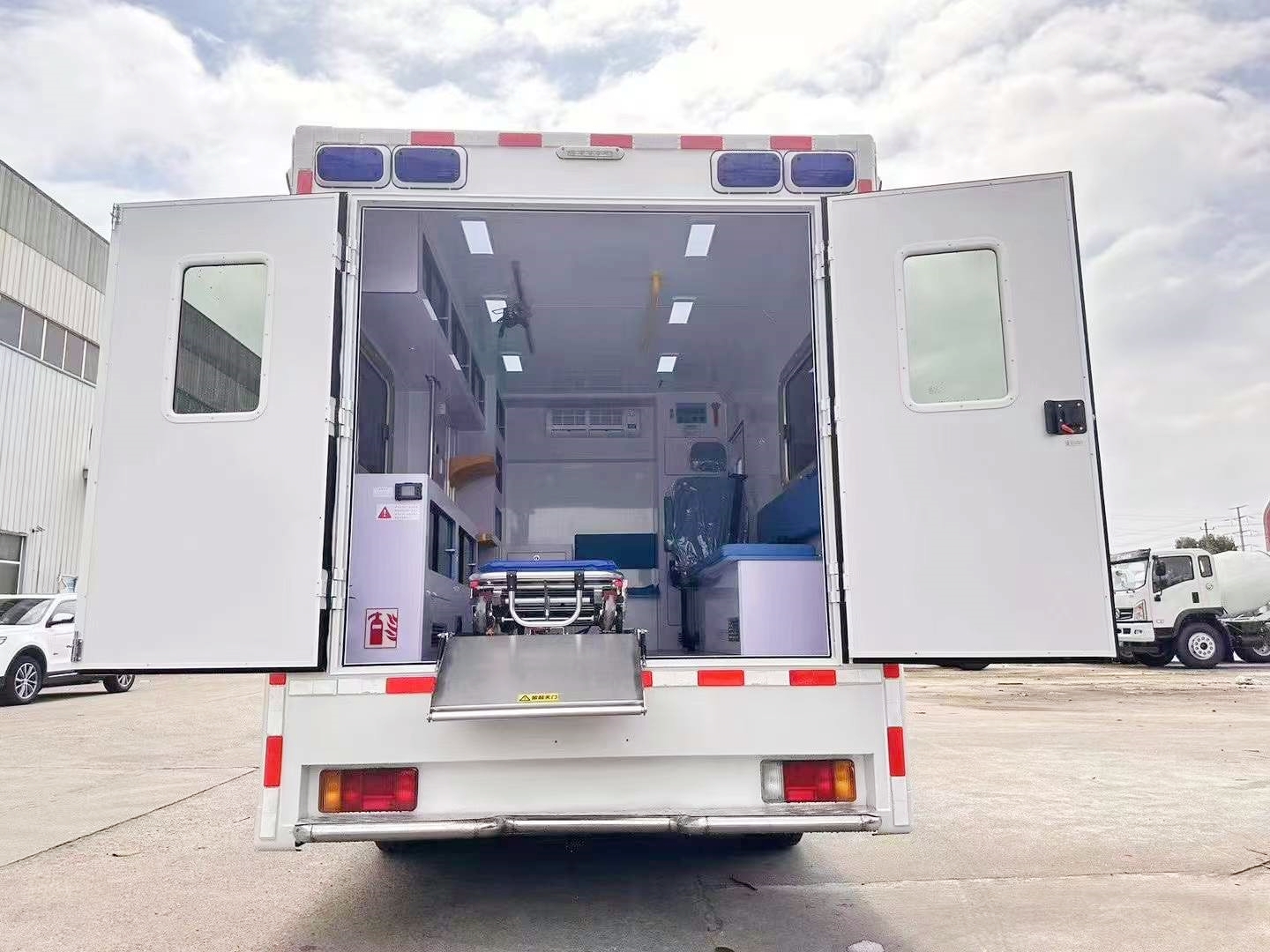

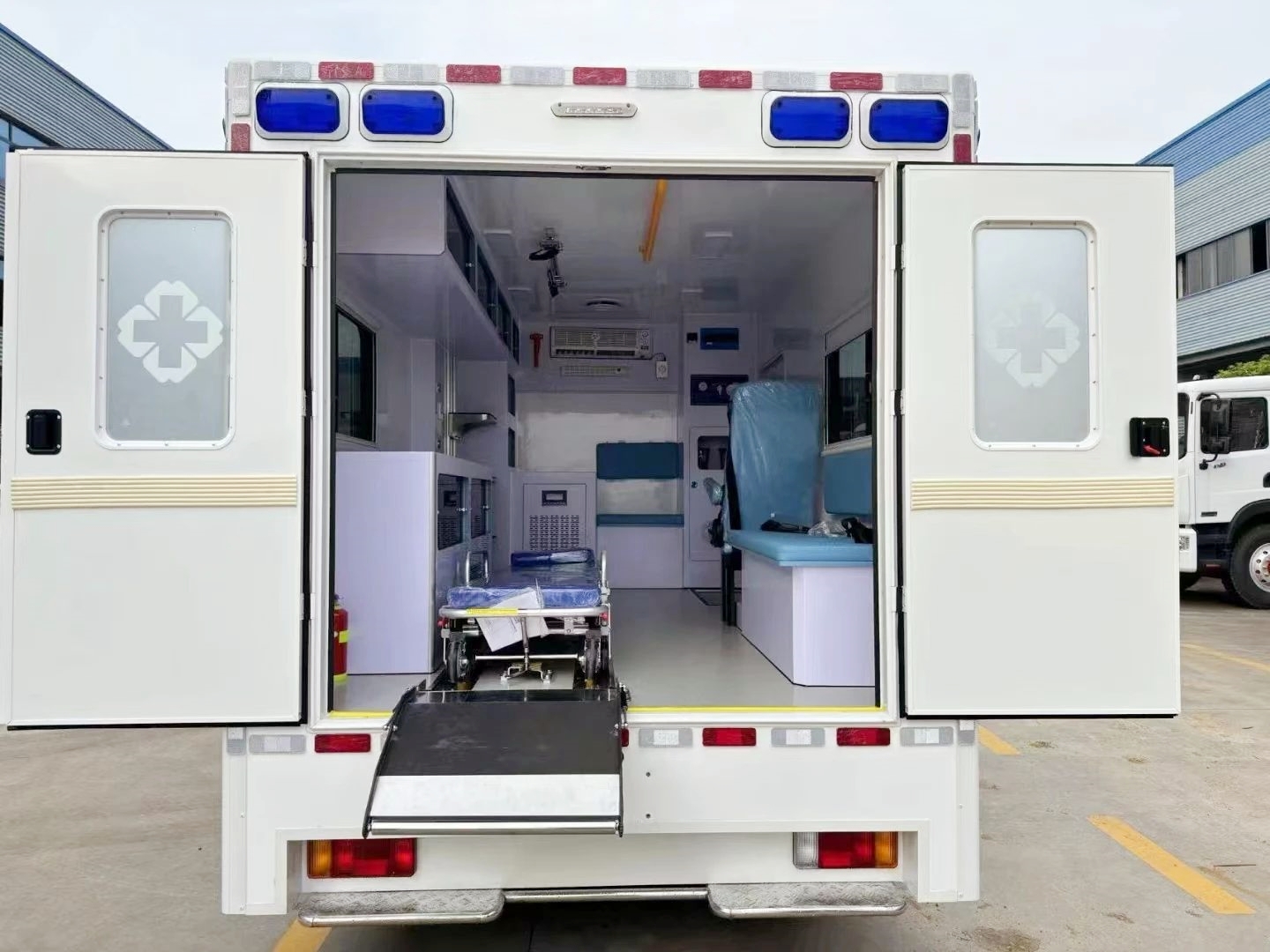

The box is made of aluminum anti torsion and tensile profiles, and the external middle door adopts a flat sliding door. The rear double door can open at an angle of up to 180 degrees, making it convenient for medical personnel to enter and exit. The sturdy box structure, along with electroplated metal parts and integrated frame doors and components, ensures the safety and durability of the entire vehicle. |
| Cabinet assembly |
(1) Install a set of long equipment cabinets made of new environmentally friendly materials, with storage spaces such as drawers and space cabinets on the cabinet body; (2) Install one set of oxygen cylinder cabinets made of new environmentally friendly materials, which can accommodate two 10L oxygen cylinders inside the cabinet; (3) Install a set of new environmentally friendly material made hanging cabinets, which adopt a sliding door structure for easy opening of cabinet doors; (4) Install one set of long seat cabinets, including seat cushions, backrests, and two-point seat belts. |
| Medical cabin interior |
(1) Medical cabin interior: Made of new lightweight materials, waterproof, mildew proof, antibacterial, and easy to clean. (2) Medical cabin floor: Made of medical floor leather material, it is non slip, waterproof, mold proof, antibacterial, and easy to clean. |
| Auxiliary equipment |
Interphone, fire extinguisher, waste bin, safety handrail, emergency hammer |
| Optional configuration |
Negative pressure purification device, driving recorder, reversing camera, shovel stretcher, stair stretcher |
| Kindly reminder |
The above information is for reference only, and vehicles can be customized according to customer requirements. |
Iveco Oba 4x4 makeshift ambulance
An ambulance is a specialized vehicle used for the care and transportation of the wounded and sick. Its main purpose is to promptly transfer the injured and sick from the accident site or home to medical institutions for further treatment. The design and equipment of the ambulance enable it to respond quickly in emergency situations and provide necessary medical rescue services.
Types of ambulance:
① Patient Transport Ambulance
Equipped with medical cabins and basic medical rescue facilities, mainly used for transporting non critically ill patients in ambulances.
② Emergency Ambulance for Guardianship
An ambulance equipped with a medical cabin, basic medical rescue facilities, and emergency and monitoring facilities, capable of treating, monitoring, and transporting critically ill patients.
③ Infection prevention ambulance
An ambulance equipped with a medical cabin and facilities for negative pressure, disinfection, protective isolation, etc., used for the treatment, monitoring, and transportation of infectious patients.
Product parameter
