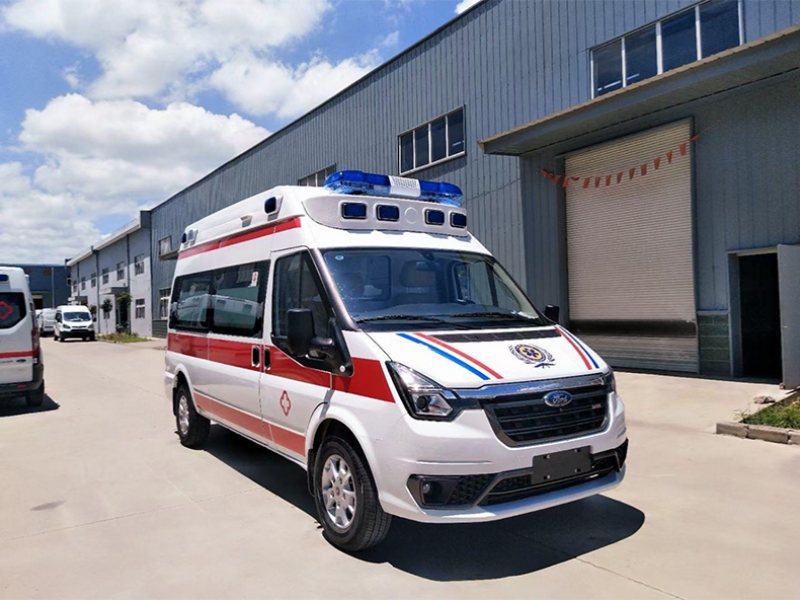

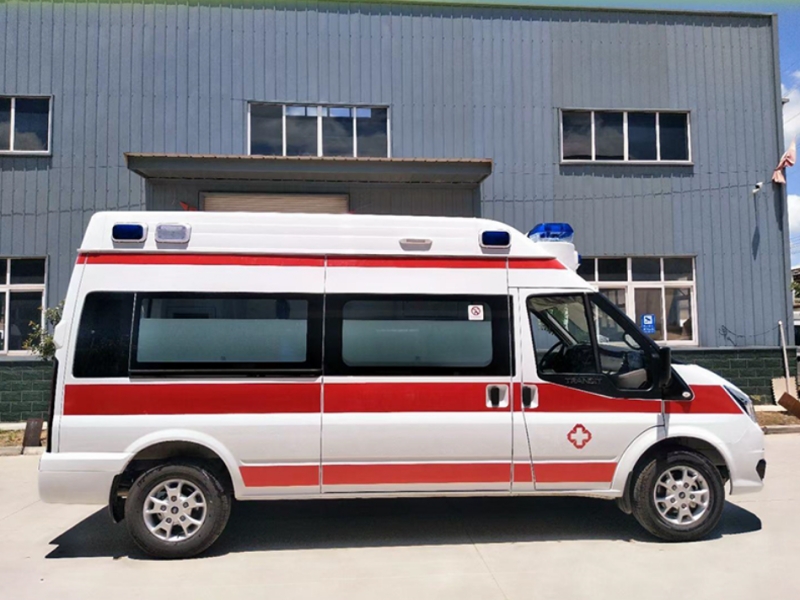

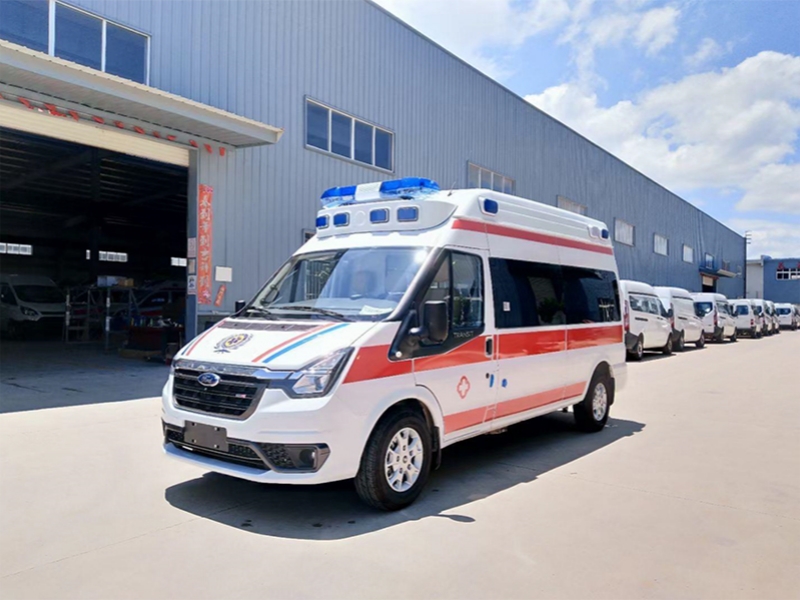

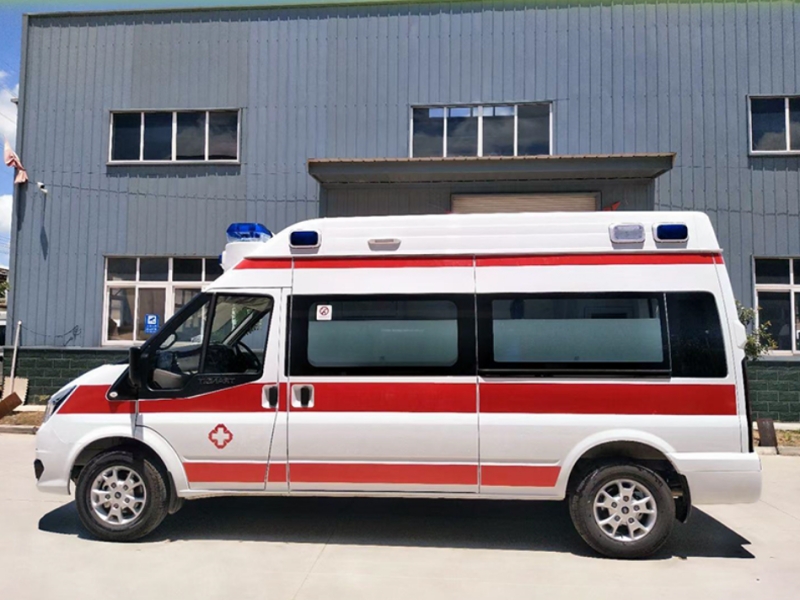

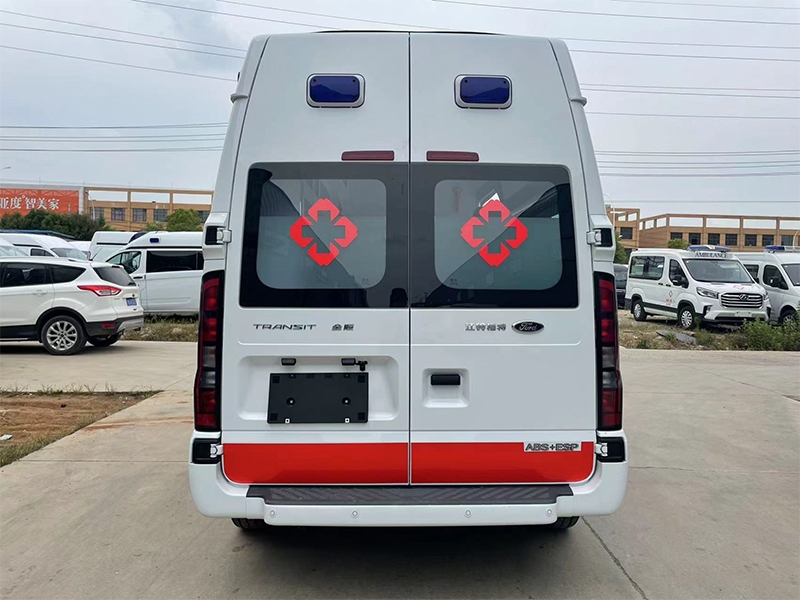

Ford V348 long wheelbase high top ambulance for guardianship
2024-11-20 14:06:07 Source：CLW
Chassis configuration:
1. Engine: DURATORQ4D226H, JMC 140HP
2.Transmission type: 6-speed gearbox
3.Wheelbase: 3750(mm)
4.Tyre: 215/75R16LT, 4+1 spare
5.Other: Central locking system, remote key, front electric doors and windows, driver's cabin central control screen, driver's seat airbag, driver's cabin cooling and heating system, all metal enclosed load-bearing body, unified reverse radar, MacPherson independent front suspension, Hodgkins rear suspension, front rear wheel drive, hydraulic assist, front ventilated disc, rear solid disc, PATS electronic anti-theft system
| Product Name |
Ford V348 long wheelbase high top ambulance for guardianship |
| Drive type |
/ |
| Gross vehicle weight(Kg) |
3700(Kg) |
| Curb weight(Kg) |
2690(Kg) |
| Rated passenger capacity |
6-9 person |
| Wheelbase(mm) |
3750(mm) |
| Overall Dimension(mm) |
5780,5820×1974×2360,2460,2570,2590,2690,2710(mm) |
| Engine brand & model |
DURATORQ4D226H, JMC 140HP |
| Fuel type |
diesel |
| Axle Quantity |
2 |
| Transmission Type |
6-speed gearbox |
| Tire Spec. & size |
215/75R16LT, 4+1 spare |
| Cab |
Ford V348 cab |
| Standard configuration |
As follows |
| Air conditioning and warm air |
High power air conditioning and warm air for medical cabin |
| Circuit and electrical alarm and warning system |
(1)1 set of long row warning lights (2)1 set of 100W alarm and handheld control (3) 2 blue flashing lights at the tail (4)Six blue, white, and blue flashes on both sides |
| Power system in the car |
1) One 500W positive rotating wave inverter 2) One set of integrated circuit control and protection system 3) One set of communication circuit protection system 4) One set of integrated switch control panel for medical cabin 5) Two national standard 220V power ports 6) One national standard 12V power socket 7) Four top LED lighting fixtures 8) One long strip disinfection lamp 9) One electric bidirectional ventilation fan |
| Oxygen pathway and oxygen |
1 Hidden oxygen pipeline system 2.Install 2 oxygen ports in the medical cabin 3 onboard oxygen outlets 4 humidification bottles 1 5 adapters, 1 piece |

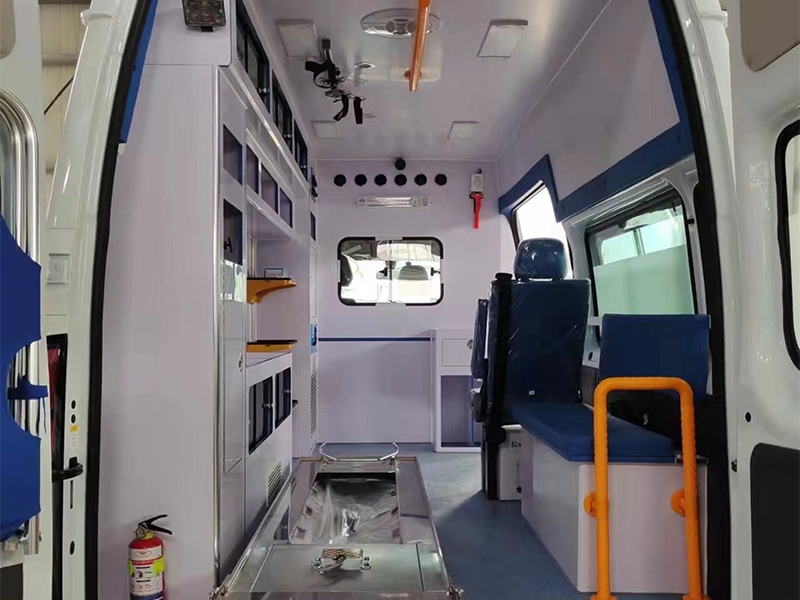

| Inside the medical cabin |
1. Original factory interior standard configuration 2. Polymer material special-shaped partition wall 3. Transparent sliding observation window for the partition wall 4. Two 10L oxygen cabinets on the left front panel 5. Long medical equipment storage cabinet on the left middle panel 6. Medical cabin full set of high-end anti-collision soft packaging wall 7. Environmentally friendly wear-resistant, anti slip blue medical floor and cushion layer |
| Seat |
1: Right side forward facing independent seat for 1 person. Seat 2: Right side 2-person long horizontal soft pack seat cabinet and seat belt |
| Emergency medical assistance system |
1 set of automatic boarding stretcher, 2 sets of stretcher guide plate and pad, 3 sets of sliding infusion rack, 4 sets of fire extinguisher, 5 sets of top and rear mounted boarding handrails, 6 sets of garbage bin |
| Vehicle appearance |
1. Black sun film on the left side of the medical cabin; 2. Semi transparent frosted film on the right and rear sides; 3. Customized standard medical appearance |
| Optional configuration |
1. Sleeper, 40 liter bracket, 2. Three layer equipment rack, 3. Medium net flashing, 4. 2000W inverter, 5. Auxiliary battery, 6. Monitoring, 6. Top large soft package interior, 7. Stretcher compartment, three speed adjustable stretcher, 8. Shovel and soft carrier, 9. Cab seat leather, 10. Negative pressure system, 4. Appearance and interior pictures reference |
| Kindly reminder |
The above information is for reference only, and vehicles can be customized according to customer requirements. |
Ford V348 long wheelbase high top ambulance for guardianship
An ambulance is a specialized vehicle used for the care and transportation of the wounded and sick. Its main purpose is to promptly transfer the injured and sick from the accident site or home to medical institutions for further treatment. The design and equipment of the ambulance enable it to respond quickly in emergency situations and provide necessary medical rescue services.
Types of ambulance:
① Patient Transport Ambulance
Equipped with medical cabins and basic medical rescue facilities, mainly used for transporting non critically ill patients in ambulances.
② Emergency Ambulance for Guardianship
An ambulance equipped with a medical cabin, basic medical rescue facilities, and emergency and monitoring facilities, capable of treating, monitoring, and transporting critically ill patients.
③ Infection prevention ambulance
An ambulance equipped with a medical cabin and facilities for negative pressure, disinfection, protective isolation, etc., used for the treatment, monitoring, and transportation of infectious patients.
Product parameter
