Chassis configuration:
①Dimensions: 8200×2350,2450×2950,3400,3500
②Engine: 4HK1-TCG61, Isuzu 190hp
③Wheelbase: 4475(mm)
④Tire: 235/75R17.5 16PR,8.25R20 14PR, 6+1 spare
⑤Generator set output power: Yuchai 200kw
⑥Elevating lighting fixture: Ground clearance height:> 1.2m 4X1000w lighting fixture
⑦Silent and noise reducing cabin body: Professional sound insulation treatment, good sound absorption effect, effective noise reduction.
⑧Cable winch: integrated flashlight winch (with 50 meter cable)
⑨Emergency light: portable emergency lighting, convenient for temporary illumination
| Product Name | Isuzu 100kw-200kw power supply vehicle |
| Drive type | 4X2 |
| Gross vehicle weight(Kg) | 10000(Kg) |
| Curb weight(Kg) | 9805(Kg) |
| Rated weight(kg) | / |
| Wheelbase(mm) | 4475(mm) |
| Engine | 4HK1-TCG61， Isuzu 190hp |
| Overall Dimension(mm) | 8200×2350,2450×2950,3400,3500 |
| Axle Quantity | 2 |
| Transmission Type | 8 speed gearbox |
| Tire Spec. & size | 235/75R17.5 16PR,8.25R20 14PR, 6+1 spare |
| Cab | Isuzu cab |
| Standard configuration | As follows |
| Motor system | The onboard generator set adopts engines from well-known domestic and foreign brands such as Cummins, Perkins, Sweden |
| Sound insulation, noise reduction, and exhaust | Hand operated electric blinds, convenient for opening and closing, and timely heat dissipation. High quality materials for sound insulation and noise reduction. |
| Vehicle hydraulic system | The use of hydraulic support legs for parking effectively protects the chassis, and the use of hydraulic support legs during operation can effectively resist earthquakes, with fully electric operation and safety. |
| Exhaust system | Gas spring window, pneumatic control, easy to operate, insect proof, anti-corrosion, exhaust and heat dissipation. |
| Unit control panel and output air switch | Manual control system: intelligent monitoring and parallel system. |
| Power cables and cable winches | Multiple winch options to meet your different needs. |
| Fire protection system | Dry powder fire extinguisher, cage type automatic fire extinguisher. |
| Lighting system and junction box | Multiple power supplies for interior lighting adapt to various environments, and ergonomic wiring devices make your use simpler. AC/DC integrated light, emergency lighting, junction box (copper wire), junction box (aviation socket) |
| Kindly reminder | The above information is for reference only, and vehicles can be customized according to customer requirements. |

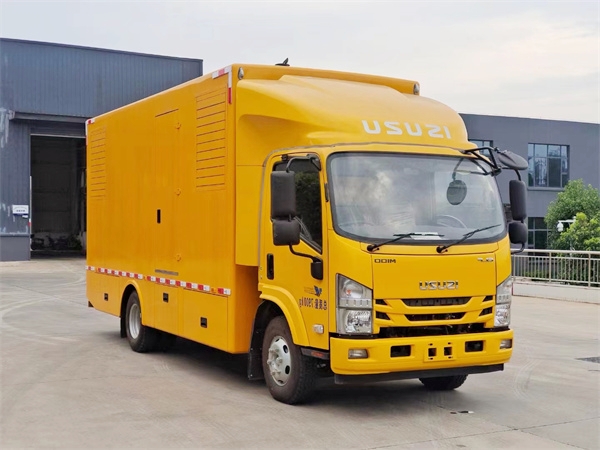

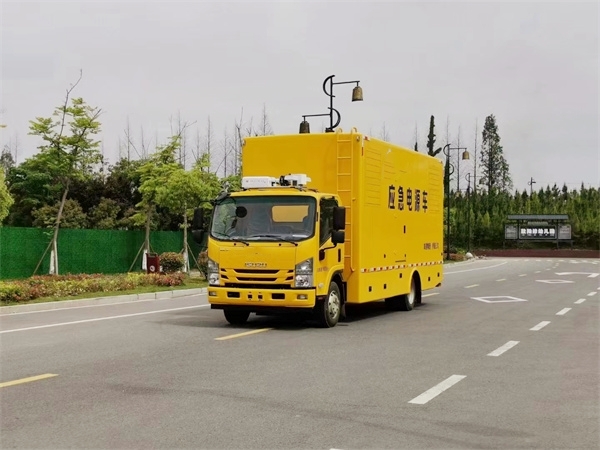

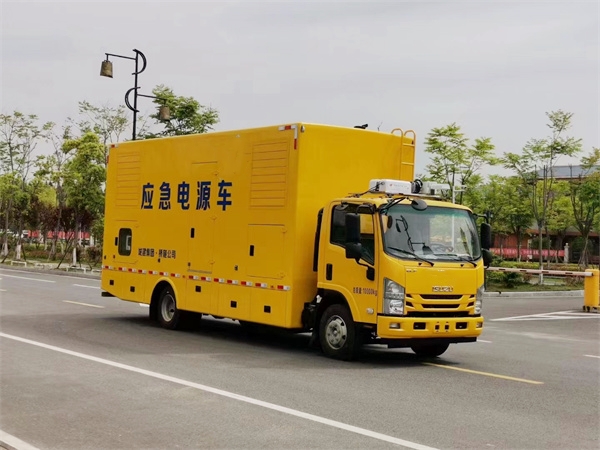

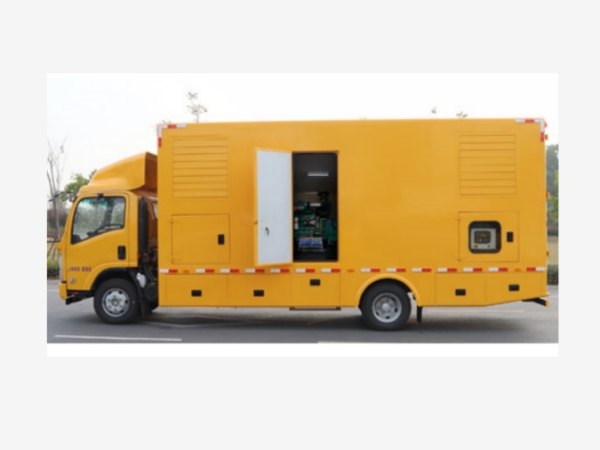

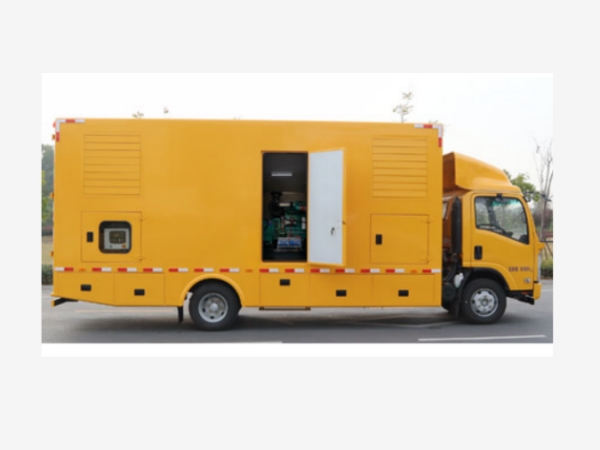

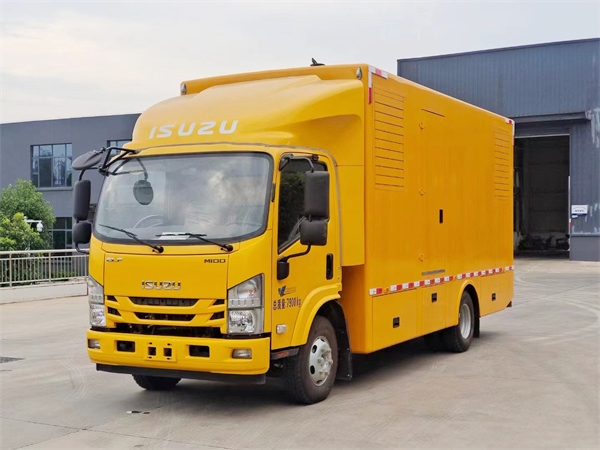

Isuzu 100kw-200kw power supply vehicle
Power supply vehicle, also known as emergency power supply vehicle, is equipped with enclosed carriages, generator sets, transmission lines, ventilation systems and other specialized devices to form a complete set of power generation equipment. It can provide emergency power supply at disaster and large-scale power outage sites and is a specialized vehicle for providing electricity.
Product parameter
