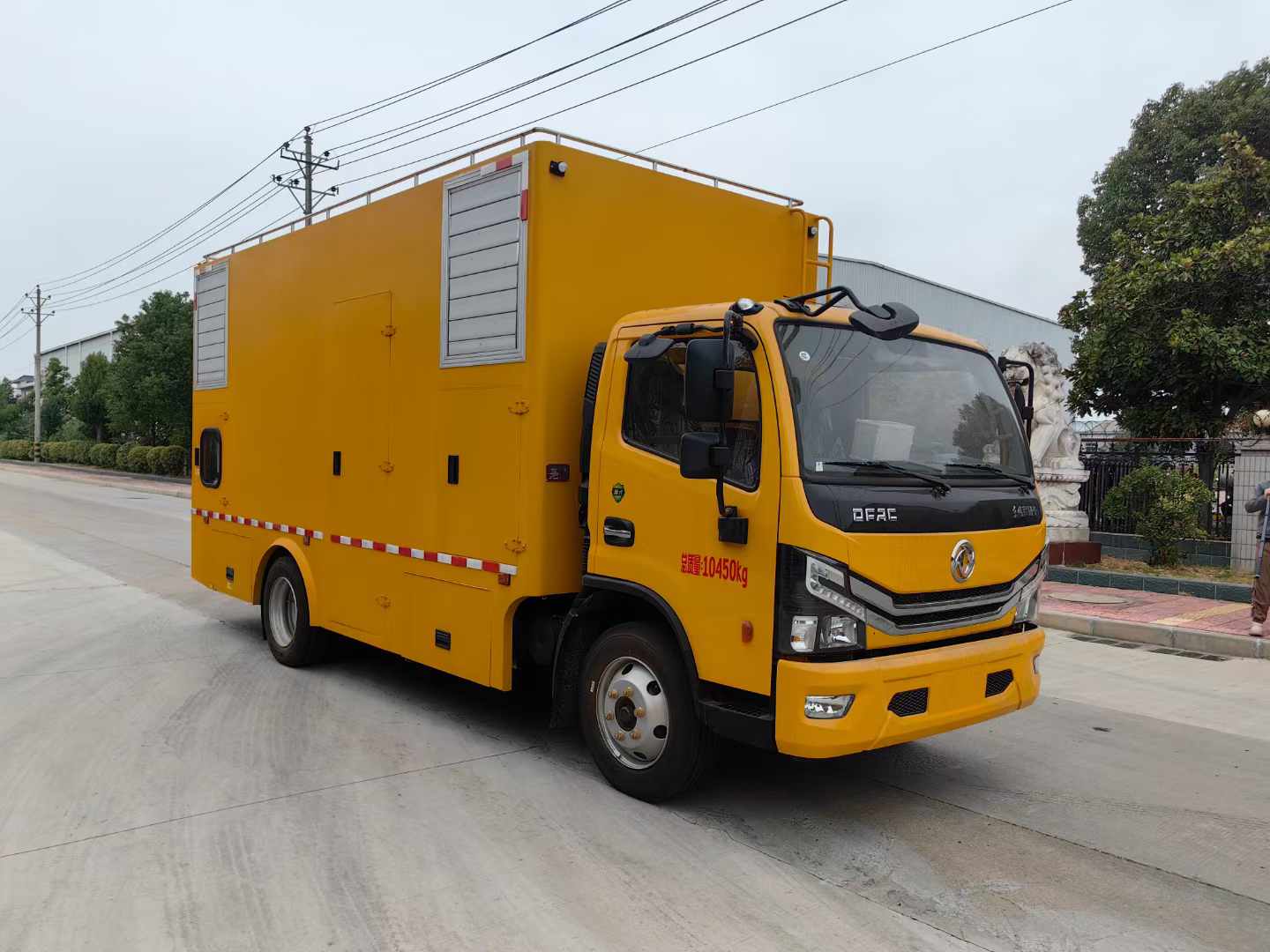

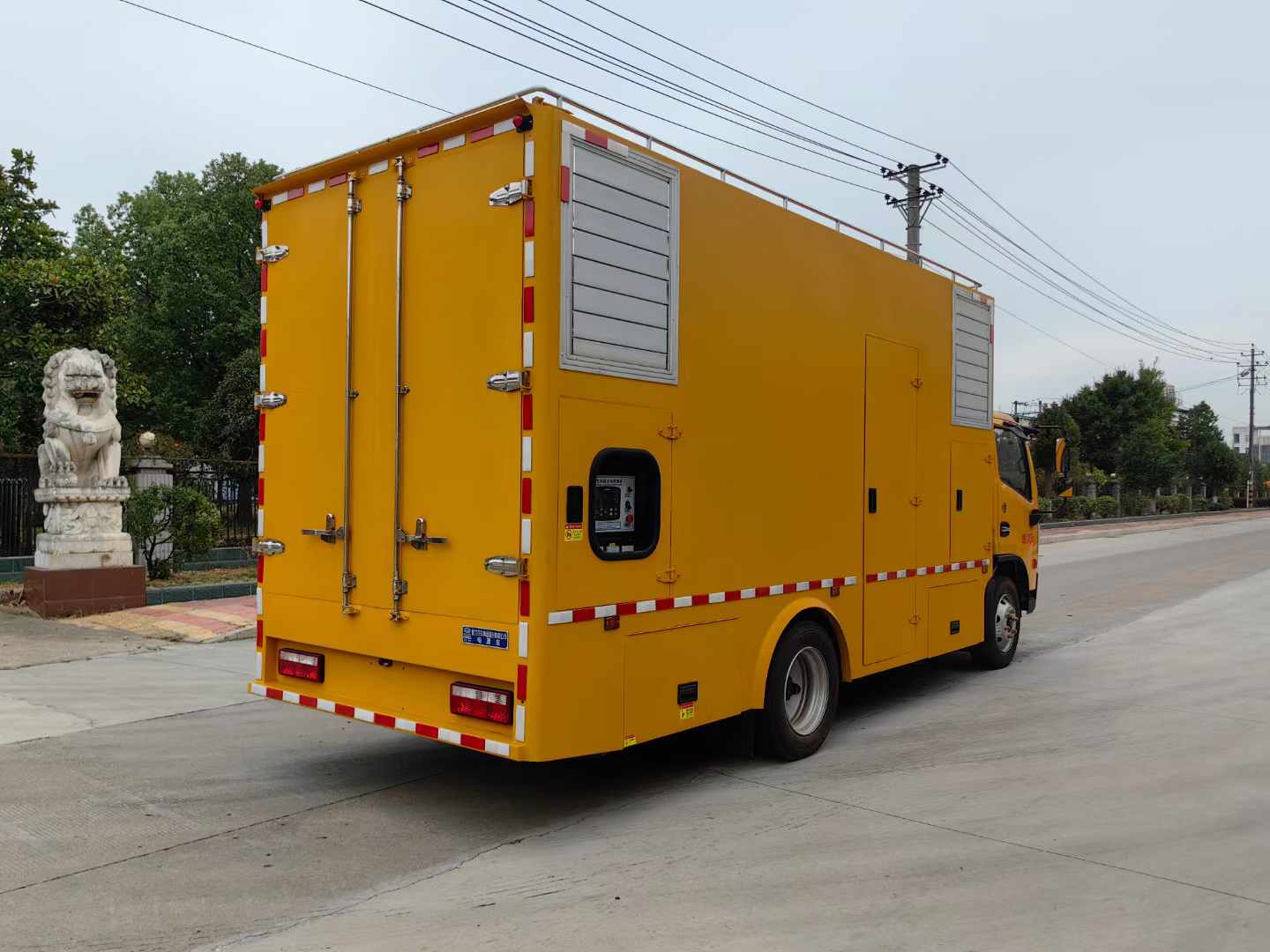

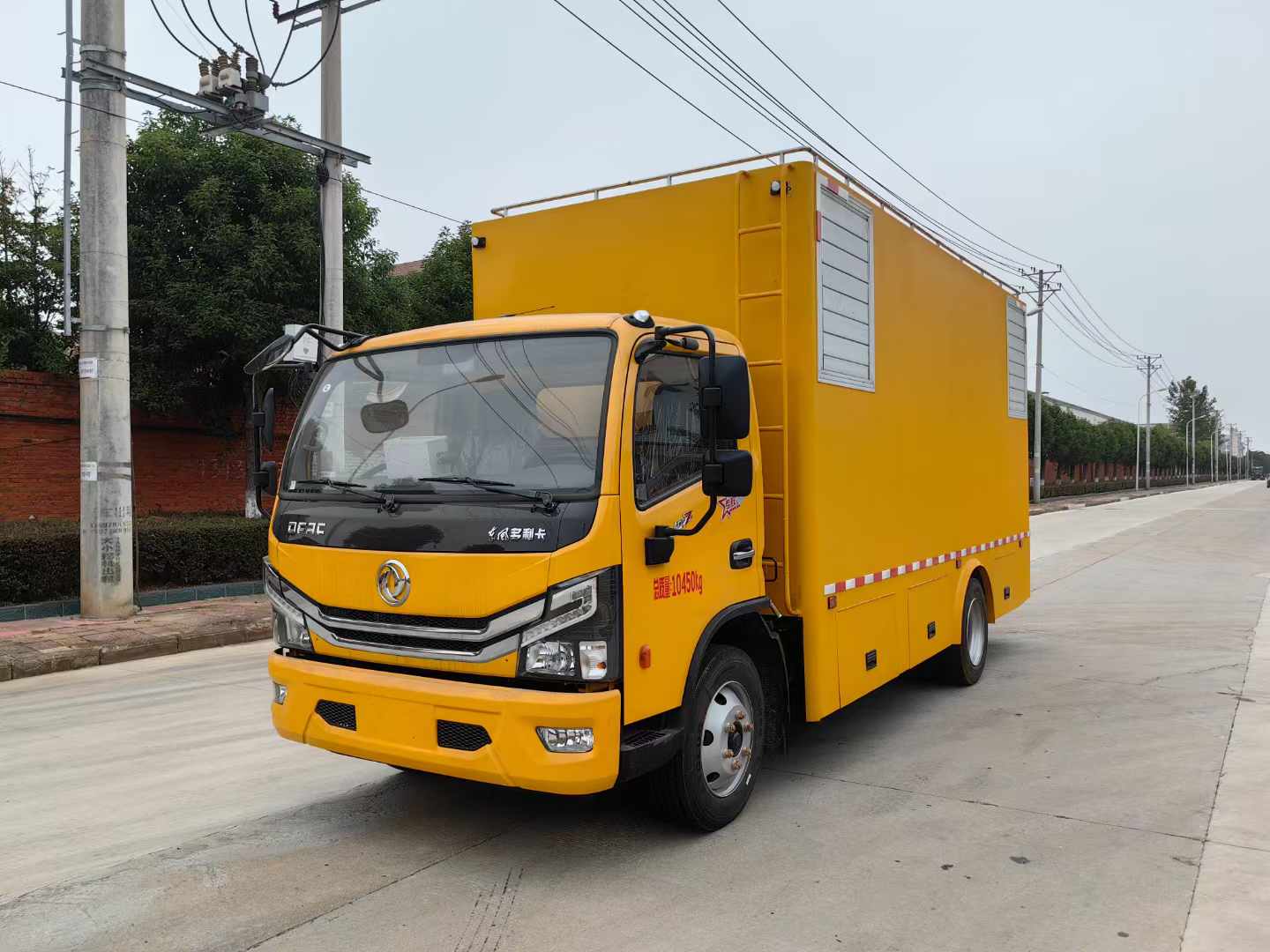

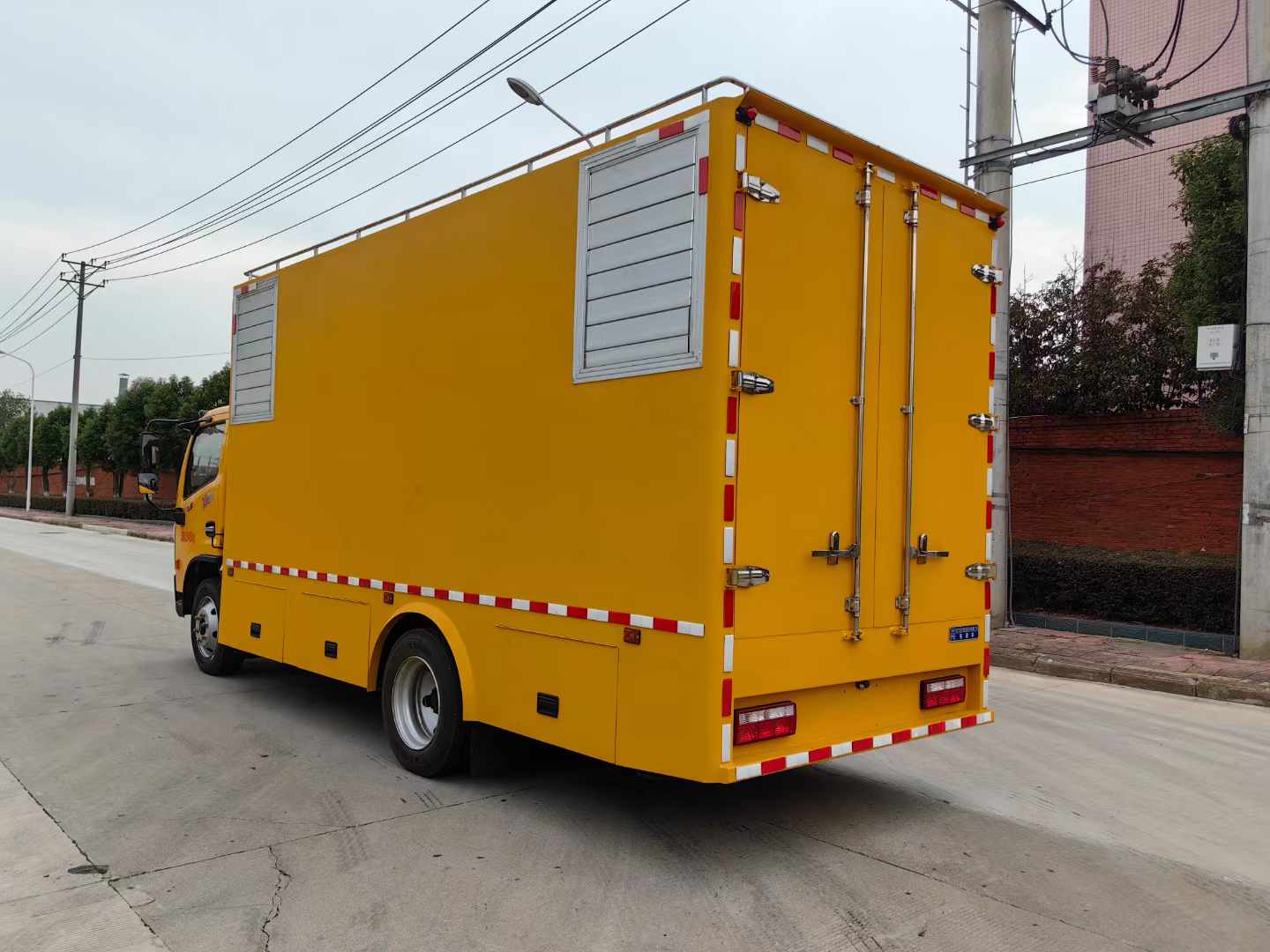

Dongfeng D7 4X2 emergency power supply vehicle

Dongfeng D7 4X2 emergency power supply vehicle

2024-11-20 14:06:07 Source：CLW

Chassis configuration:
Dongfeng Dorica D7, emergency power vehicle, emergency rescue vehicle, wheelbase of 3800mm, air conditioning, direction assist, central locking, electric windows, Yuchai 165 horsepower, 6-speed gearbox.

Product Name

Dongfeng D7 4X2 emergency power supply vehicle

Drive type

4X2

Gross vehicle weight(Kg)

9400(Kg)

Curb weight(Kg)

9205(Kg)

Rated weight(kg)

Wheelbase(mm)

3800(mm)

Overall Dimension(mm)

7250,7400,7500,7550,7850×2270,2350×3150,3250(mm)

Engine

YCY30165-60, Yuchai 165hp

Axle Quantity

Transmission Type

6 speed gearbox

Tire Spec. & size

245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR, 6+1 spare

Cab

Dongfeng D7

Standard configuration

As follows

Motor system

The onboard generator set adopts engines from well-known domestic and foreign brands such as Cummins, Perkins, Sweden

Sound insulation, noise reduction, and exhaust

Hand operated electric blinds, convenient for opening and closing, and timely heat dissipation. High quality materials for sound insulation and noise reduction.

Vehicle hydraulic system

The use of hydraulic support legs for parking effectively protects the chassis, and the use of hydraulic support legs during operation can effectively resist earthquakes, with fully electric operation and safety.

Exhaust system

Gas spring window, pneumatic control, easy to operate, insect proof, anti-corrosion, exhaust and heat dissipation.

Unit control panel and output air switch

Manual control system: intelligent monitoring and parallel system.

Power cables and cable winches

Multiple winch options to meet your different needs.

Fire protection system

Dry powder fire extinguisher, cage type automatic fire extinguisher.

Lighting system and junction box

Multiple power supplies for interior lighting adapt to various environments, and ergonomic wiring devices make your use simpler. AC/DC integrated light, emergency lighting, junction box (copper wire), junction box (aviation socket)

Kindly reminder

The above information is for reference only, and vehicles can be customized according to customer requirements.

Dongfeng D7 4X2 emergency power supply vehicle

Power supply vehicle, also known as emergency power supply vehicle, is equipped with enclosed carriages, generator sets, transmission lines, ventilation systems and other specialized devices to form a complete set of power generation equipment. It can provide emergency power supply at disaster and large-scale power outage sites and is a specialized vehicle for providing electricity.

Installation configuration:
1) The outer steel of the upper compartment is made of high-quality cold-rolled steel plate, and the inner lining is made of high-quality cold-rolled steel plate bent skeleton. The technology is advanced, the strength is firm, and the upper part is treated with electrophoretic rust prevention.
2) The cabin is a fully sealed structure that meets the requirements of transportation, rain protection, corrosion prevention, fire prevention, and rust prevention. The rear of the carriage has a double door.
3) The intake and exhaust air of the generator set are treated with noise reduction, and the muffler is treated with noise reduction. The generator set adopts brushless generator set with a power of ≥ 200KW, which can meet the long-term continuous safe operation of full load, rated frequency of 50HZ, and rated voltage of 220/400V. Speed regulation method: electronic speed regulation, starting battery, battery main brake. The oil tank capacity of the base of the generator set can ensure that the generator set can operate at full load for 8 hours, and the installation position is reasonable and convenient for maintenance personnel to refuel daily.
4) The control system can achieve one click intelligence for various parameters such as water temperature, oil pressure, speed, frequency, voltage, current, power, etc.
5) The vehicle is equipped with four hydraulic support legs, which can evenly distribute the static pressure of the vehicle when parked, protecting the wheels and spring steel plates. Imported high-quality multi way valve group is selected, and the hydraulic support cylinder adopts imported sealing components. The single leg static load is 5 tons, and a bidirectional hydraulic lock is installed.
