Dongfeng Tianjin 200kw-300kw power supply vehicle
2024-11-20 14:06:07 Source：CLW
Dongfeng Tianjin 200kw-300kw power supply vehicle
Chassis configuration:
Total weight: 12490,12475,12000,11505(Kg)
Engine: B6.2NS6B210, Cummins 210hp
Transmission: 10 speed gearbox
Wheelbase: 3800,3950,4200,4500,4700,5000,5100(mm)
| Product Name |
Dongfeng Tianjin 200kw-300kw power supply vehicle |
| Drive type |
4X2 |
| Gross vehicle weight(Kg) |
12490,12475,12000,11505(Kg) |
| Curb weight(Kg) |
12295,12360,12280,11805,11310,12345,11870,11375(Kg) |
| Rated weight(kg) |
/ |
| Wheelbase(mm) |
3800,3950,4200,4500,4700,5000,5100(mm) |
| Overall Dimension(mm) |
7940,7540×2550,2500×3750,3600,3500(mm) |
| Engine brand & model |
B6.2NS6B210, Cummins 210hp |
| Axle Quantity |
2 |
| Transmission Type |
10 speed gearbox |
| Brake system |
air brake |
| Tire Spec. & size |
9.00R20 16PR,255/70R22.5 16PR,10R22.5 16PR, 6 |
| Cab |
Dongfeng Tianjin cab |
| Standard configuration |
As follows |
| Motor system |
The onboard generator set adopts engines from well-known domestic and foreign brands such as Cummins, Perkins, Sweden |
| Sound insulation, noise reduction, and exhaust |
Hand operated electric blinds, convenient for opening and closing, and timely heat dissipation. High quality materials for sound insulation and noise reduction. |
| Vehicle hydraulic system |
The use of hydraulic support legs for parking effectively protects the chassis, and the use of hydraulic support legs during operation can effectively resist earthquakes, with fully electric operation and safety. |
| Exhaust system |
Gas spring window, pneumatic control, easy to operate, insect proof, anti-corrosion, exhaust and heat dissipation. |
| Unit control panel and output air switch |
Manual control system: intelligent monitoring and parallel system. |
| Power cables and cable winches |
Multiple winch options to meet your different needs. |
| Fire protection system |
Dry powder fire extinguisher, cage type automatic fire extinguisher. |
| Lighting system and junction box |
Multiple power supplies for interior lighting adapt to various environments, and ergonomic wiring devices make your use simpler. AC/DC integrated light, emergency lighting, junction box (copper wire), junction box (aviation socket) |
| Kindly reminder |
The above information is for reference only, and vehicles can be customized according to customer requirements. |

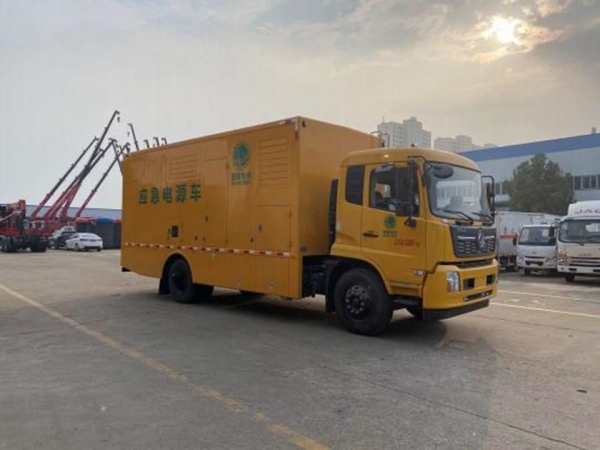

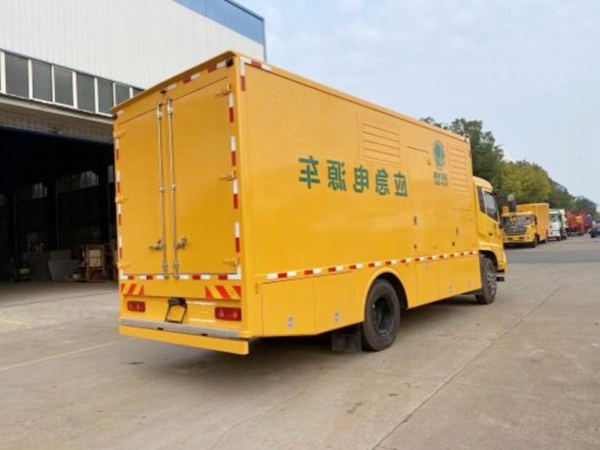

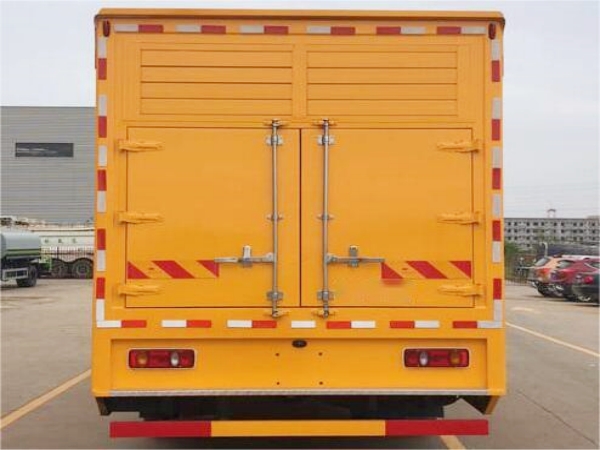

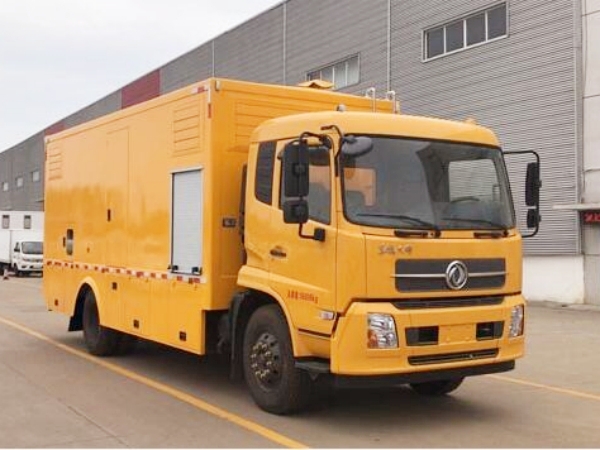

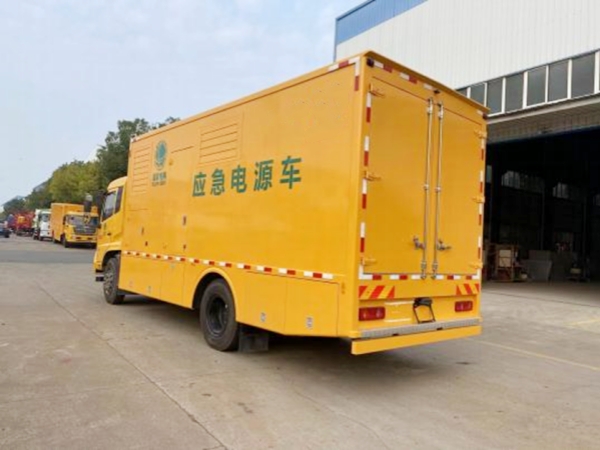

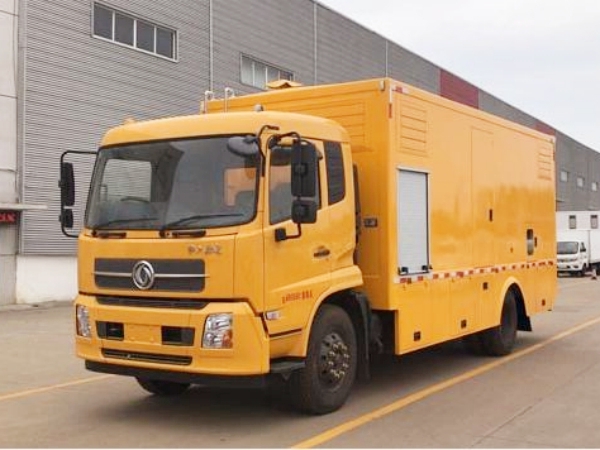

Dongfeng Tianjin 200kw-300kw power supply vehicle
Power supply vehicle, also known as emergency power supply vehicle, is equipped with enclosed carriages, generator sets, transmission lines, ventilation systems and other specialized devices to form a complete set of power generation equipment. It can provide emergency power supply at disaster and large-scale power outage sites and is a specialized vehicle for providing electricity.
Advantages of this vehicle:
1) Vehicle speed. The power vehicle uses Dongfeng Motor's engine and chassis, with a moving speed of over 100 km/h.
2) Load capacity. On the basis of considering the total weight of all emergency power supply equipment, there is still a margin of 10% to 15% for the vehicle's load capacity.
3) Humanized operation and maintenance space. During the start-up, shutdown, and instrument observation of the unit, operators can perform them in the operating room inside the vehicle. There is ample space inside the carriage and accessories are installed to facilitate the maintenance and upkeep of the crew. The operating room is equipped with computers, air conditioning, sofas, etc., providing a good working environment for operators in harsh outdoor environments with electricity protection.
4) Safety measures. There are fire extinguishers at the entrance of the carriage, smoke detectors, AC/DC explosion-proof lighting, emergency lights, and convenient grounding rods and wires inside the carriage to effectively ensure the safety of the power supply vehicle. Choose an intelligent fire extinguishing system that can be unmanned.
Product parameter
